Features of the Corsair 3500X LX-R RGB iCUE Link Black Panoramic Glass Case

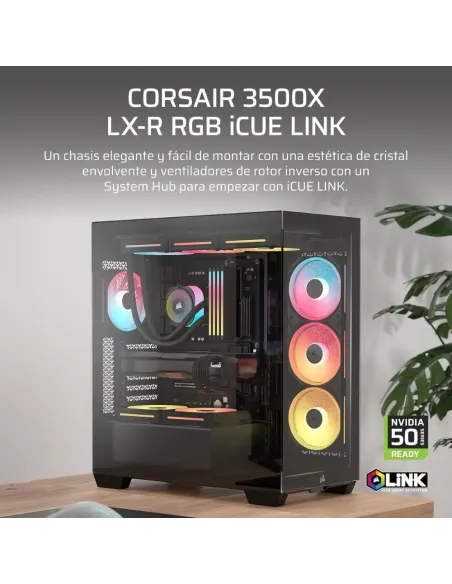

Stunning Panoramic Design

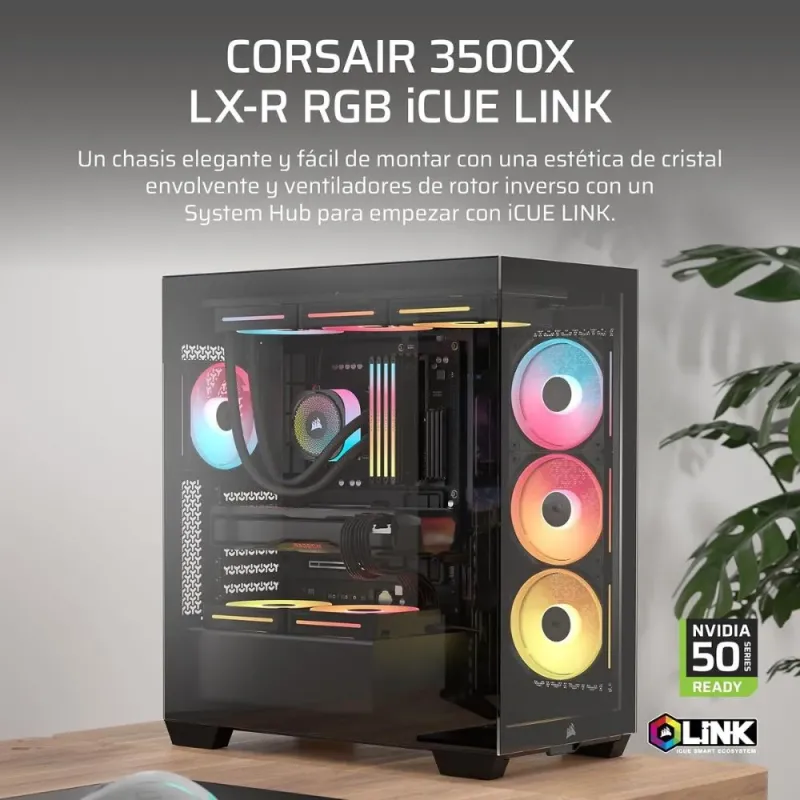

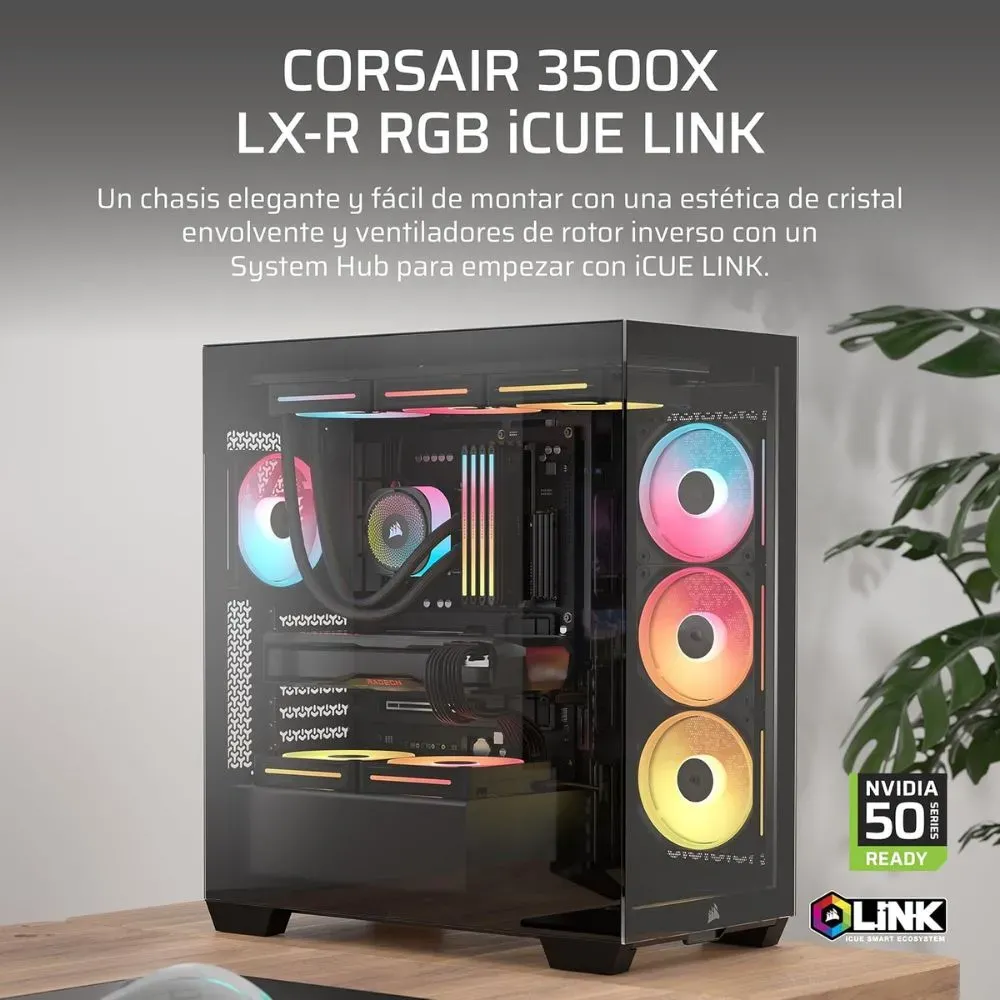

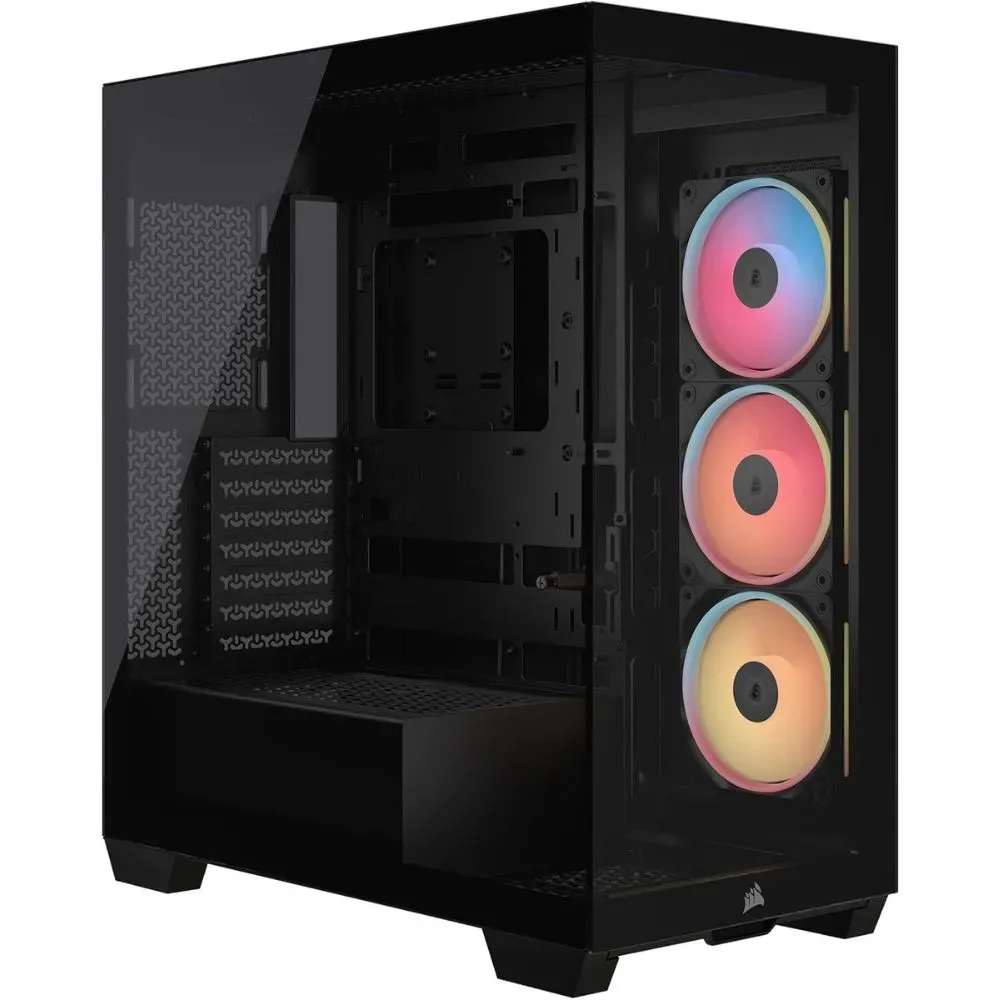

The Corsair 3500X LX-R RGB tower stands out for its fully removable panoramic tempered glass front and side panels, which offer a 270-degree wraparound view of your internal components. Measuring 19.92 x 18.11 x 9.45 inches, this compact mid-tower chassis fits perfectly on any desk without taking up the entire surface, maintaining the modern and professional gaming aesthetic that defines Corsair.
Revolutionary iCUE LINK System
The iCUE LINK ecosystem features a unique single-cable technology that transforms cable management. Instead of multiple confusing connectors for fans and RGB lighting, each compatible device daisy-chains directly to the next, all the way to the central hub. This means a complete elimination of cable clutter, quick installation, and a clean interior view. The included iCUE LINK System Hub can connect up to 24 devices simultaneously and is controlled via the free Corsair iCUE software for full synchronization of lighting and speed.

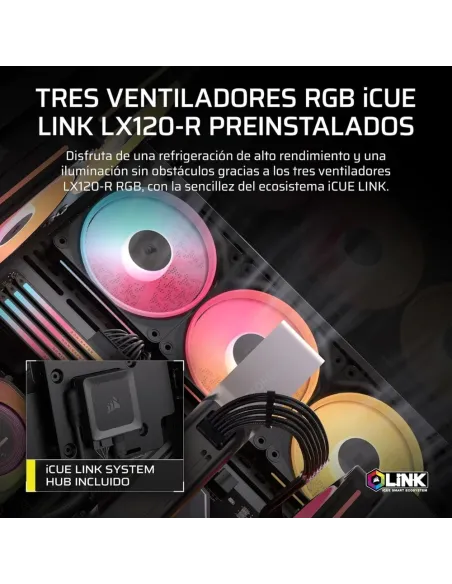

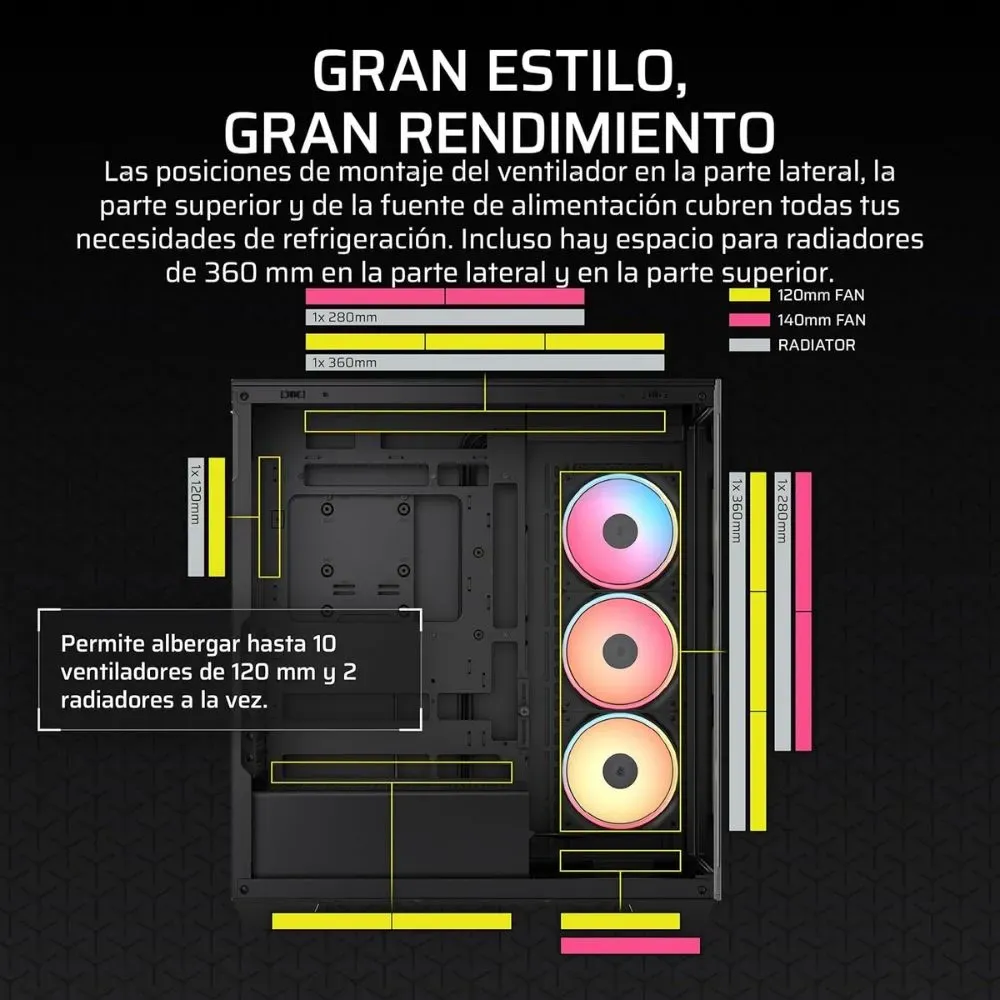

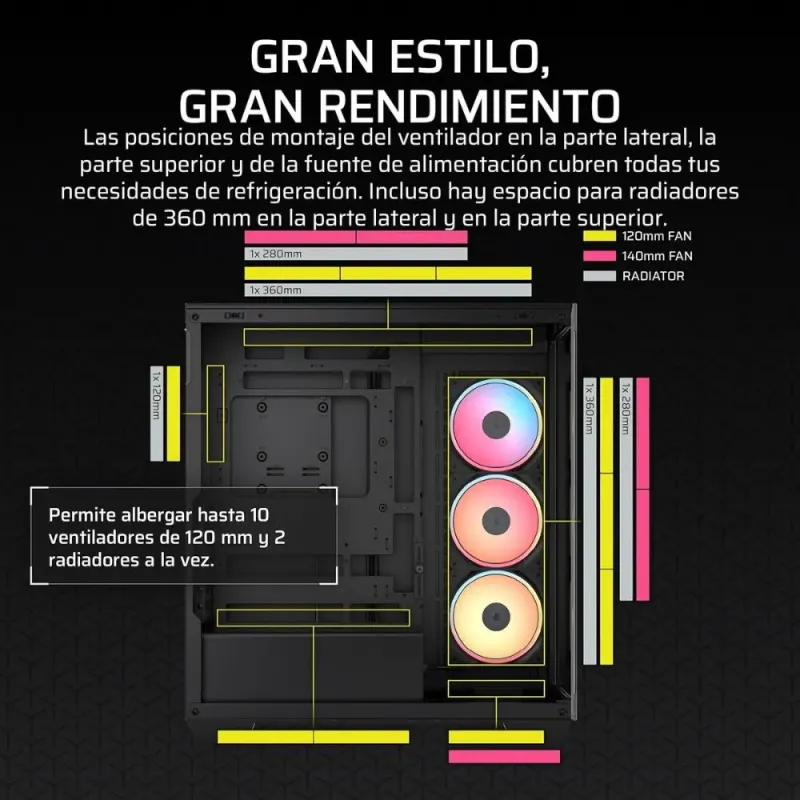

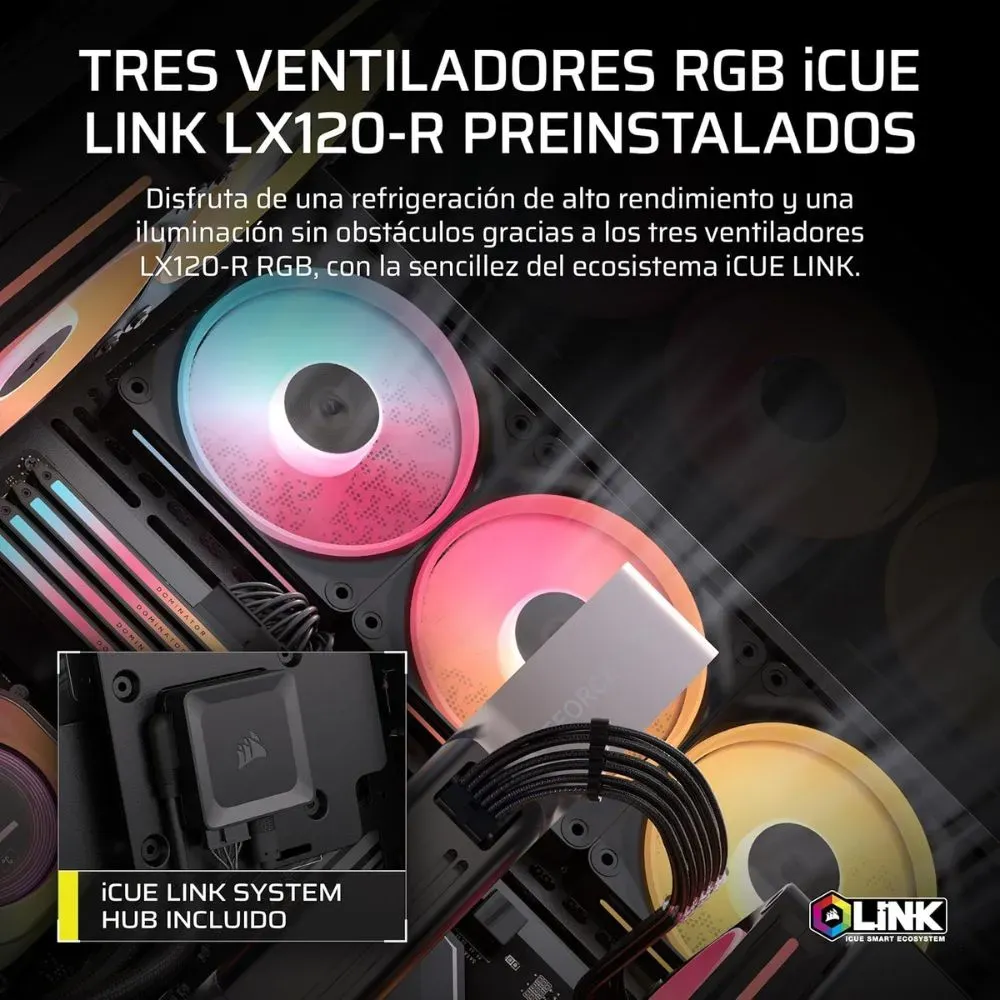

Advanced and Flexible Cooling

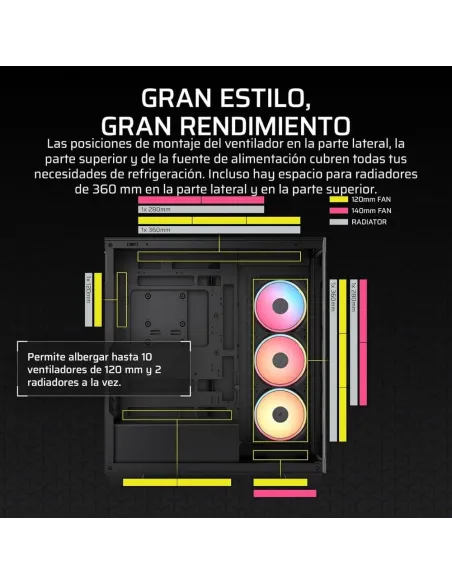

It includes 3 pre-installed LX120-R RGB reverse-rotation fans that ensure powerful airflow from the moment you power it on. The spacious interior accommodates up to 10 120mm fans or 5 140mm fans, with mounting points on the sides, top, and bottom. But most importantly: it supports 360mm radiators in both the top and side positions simultaneously, enabling dual liquid cooling setups for overclocked CPUs and GPUs. This dual-radiator capability typically requires full-tower cases, but the 3500X delivers it in a compact mid-tower format.
Universal Motherboard Compatibility

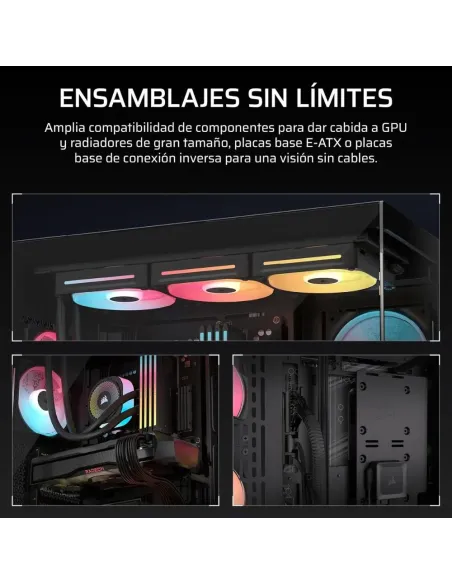

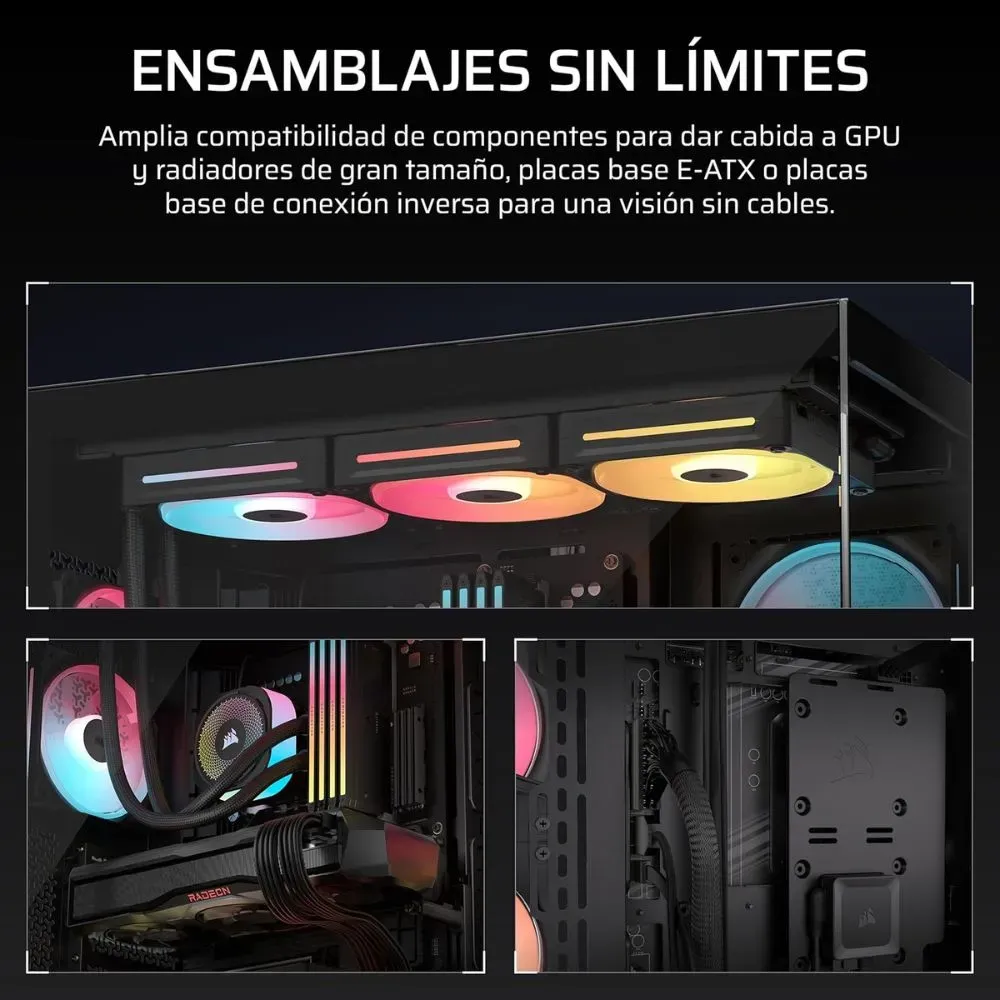

The Corsair 3500X case is compatible with Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm x 277mm, covering the vast majority of motherboards on the market. It has been specifically validated for ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth reverse-connection motherboards, which relocate all connectors to the rear of the PCB, allowing for a completely cable-free front view. These premium motherboards integrate seamlessly with the chassis’s minimalist design.
Maximum Support for Premium GPUs
It accommodates graphics cards up to 410mm with ease, supporting even the largest flagship RTX and Radeon models. It includes a GPU stabilization anti-sag bracket that prevents heavy cards from sagging, keeping your hardware structurally protected. This is especially important for high-end gaming builds where the GPU is the most valuable component.

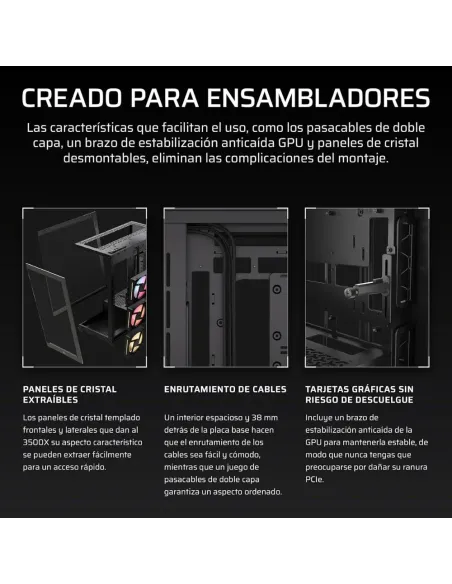

Professional Cable Management

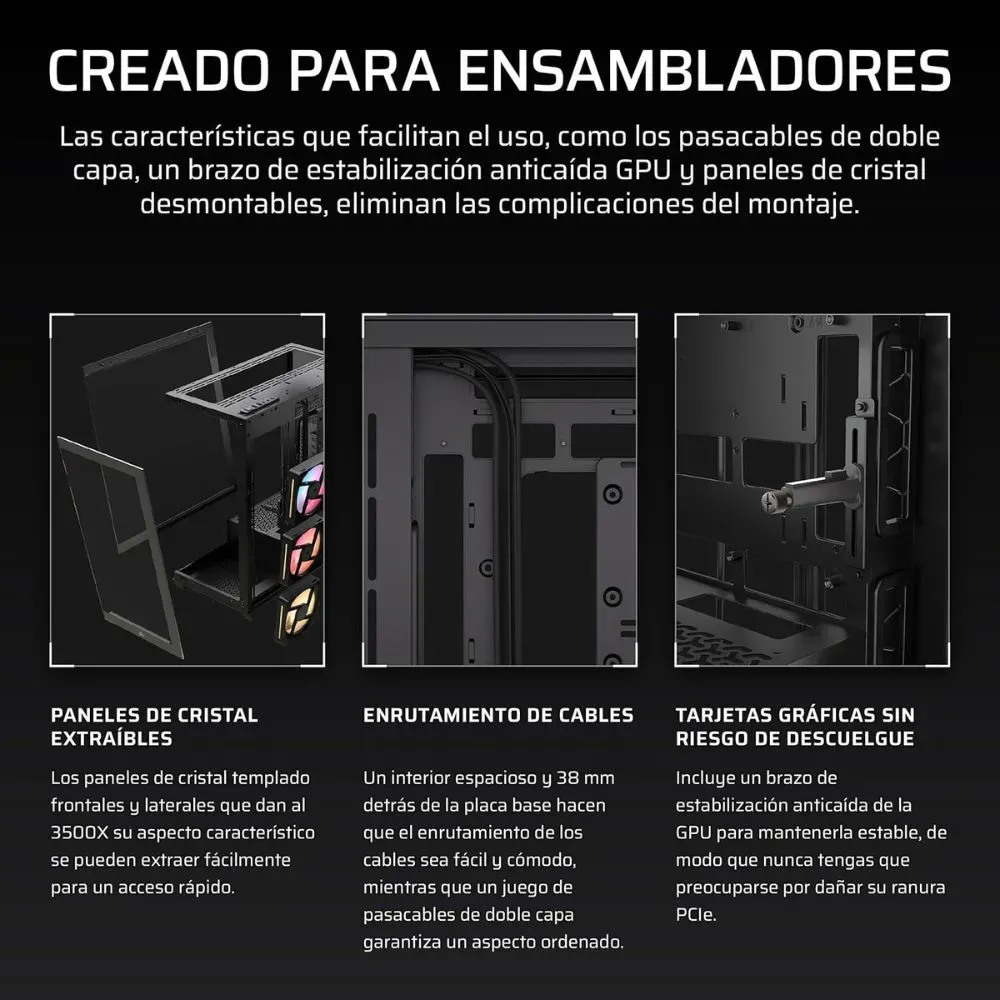

The interior features dual rubber cable guides (soft interior, firm exterior) strategically positioned for hassle-free cable routing. It includes iCUE LINK hooks integrated into the top panel to secure ecosystem cables. Additionally, it features 2 3.5" bays for hard drives and 2 2.5" bays for SSDs, allowing for storage expansion without sacrificing aesthetics.
Dedicated and Efficient Ventilation
Dedicated front ventilation channels ensure optimized airflow to critical components. The included LX120-R fans feature Magnetic Dome bearings and AirGuide technology for maximum efficiency and quiet operation. The multi-point mounting design allows for 360-degree airflow, ideal for long gaming sessions or intensive workstation use.

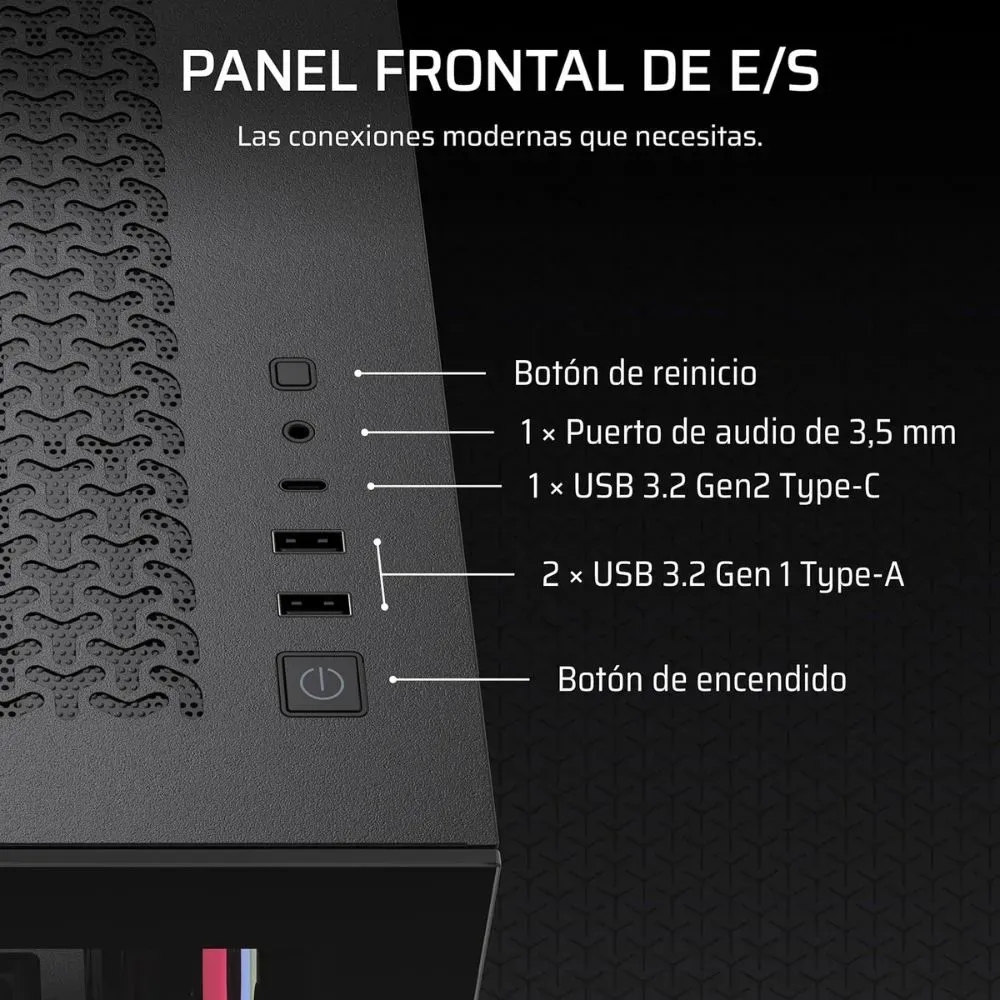

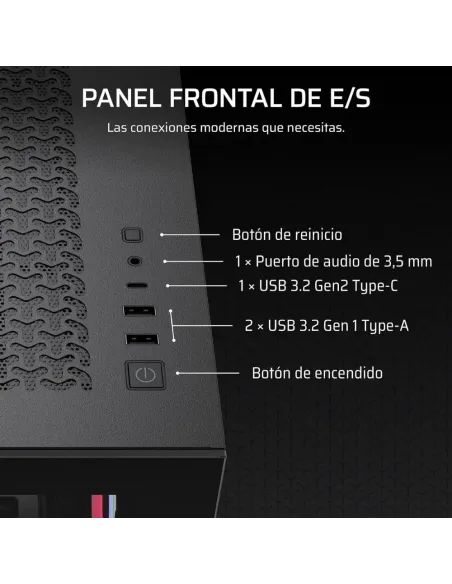

Modern Front Connectivity

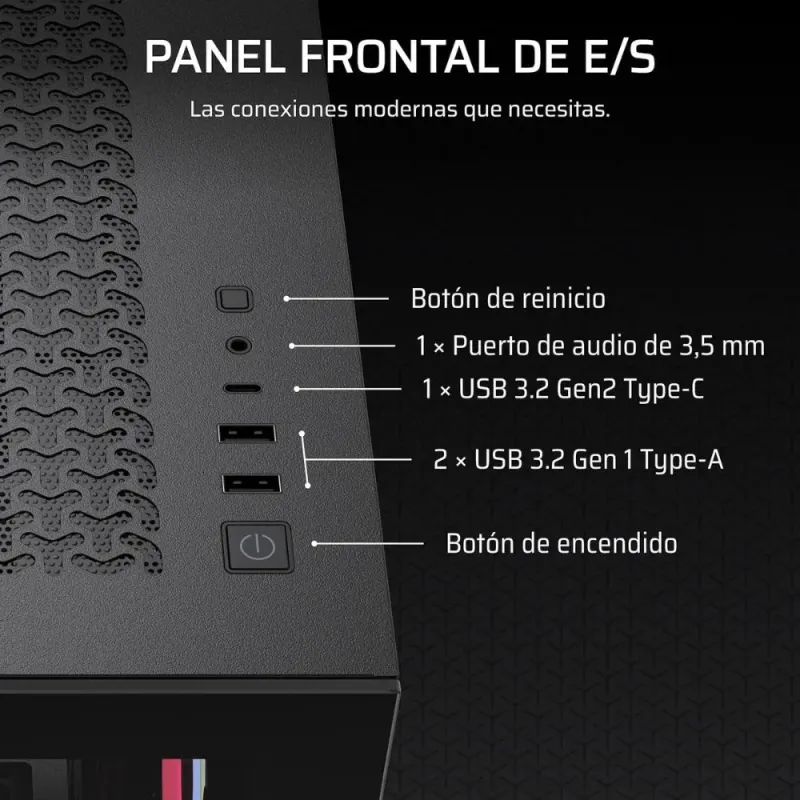

The front panel includes USB 3.2 Gen 1 Type-A and USB 3.2 Gen 2 Type-C ports, enabling fast connections to gaming peripherals, ultra-fast data transfers, and compatibility with modern devices. The connectivity is designed for users who need frequent access to high-performance peripherals.
Technical Specifications Summary
- Type: Mid-Tower ATX Panoramic Tempered Glass
- Material: Steel with removable tempered glass front and side panels

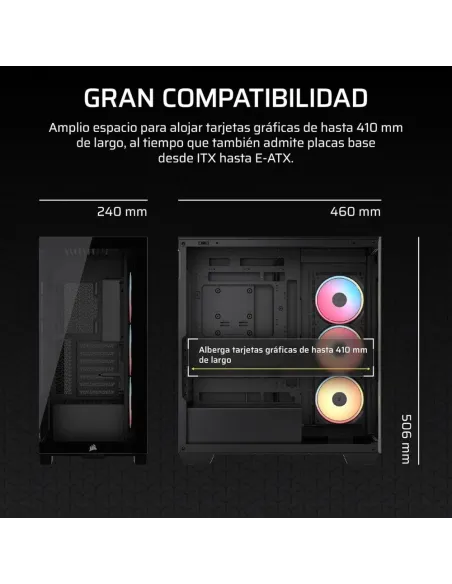

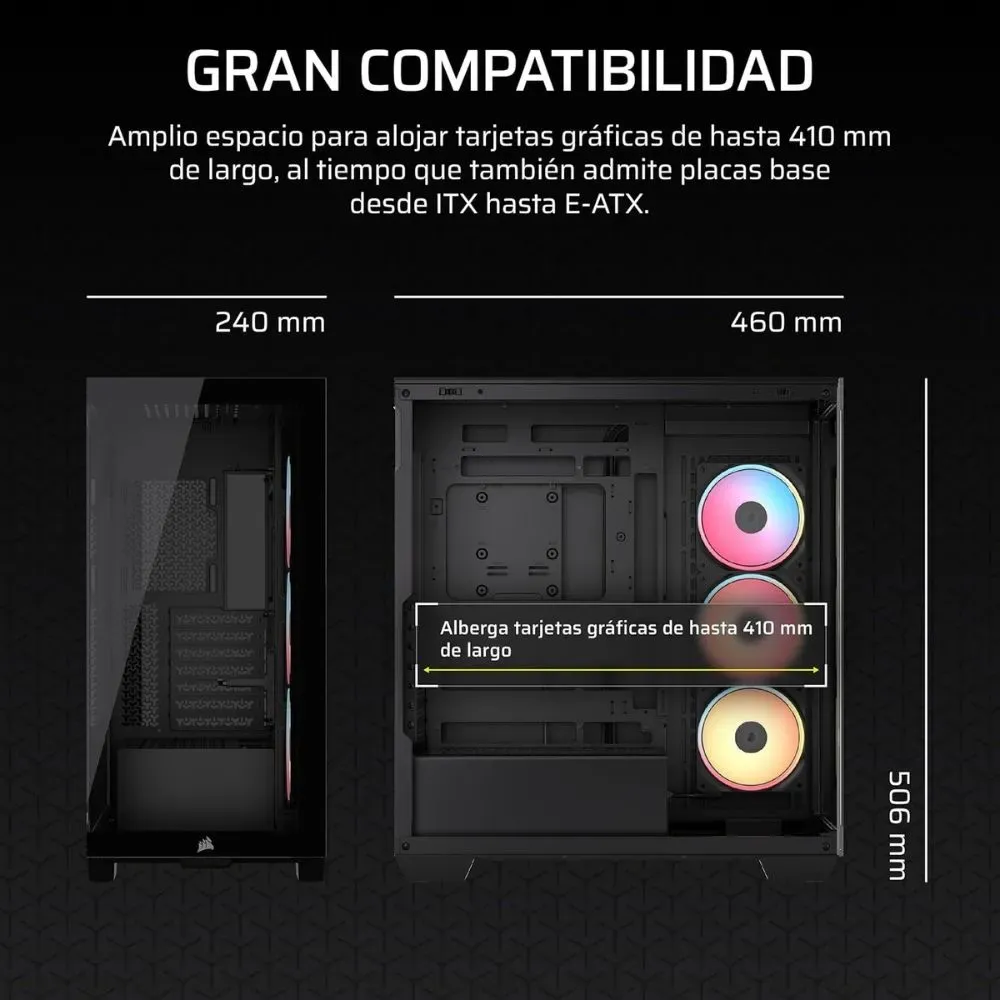

- Dimensions: 19.92" x 18.11" x 9.45" (506mm x 460mm x 240mm)
- Weight: Reinforced steel frame
- Motherboard Compatibility: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
- CPU Cooler Support: Up to 170mm in height
- Maximum GPU Length: 410mm with anti-sag bracket
- Fans: 3x LX120-R RGB included (up to 10x 120mm or 5x 140mm total)
- Radiators: 360mm top + 360mm side + 120mm rear
- Drive bays: 2x 3.5" HDD + 2x 2.5" SSD
- RGB connectors: 1x iCUE LINK System Hub (24 devices)
- USB ports: 2x USB 3.2 Gen 1 Type-A + 1x USB 3.2 Gen 2 Type-C
- Color: Black
- Warranty: 2-year limited Corsair
Ideal For
This case is perfect for enthusiast builders, competitive gamers, streamers, and content creators who need a balance of striking aesthetics, elite cooling, and clean cable management. Compatibility with reverse-mount motherboards makes it a premium choice for systems with truly stunning visuals. It’s also excellent for overclockers who require dual radiators in a compact form factor.
