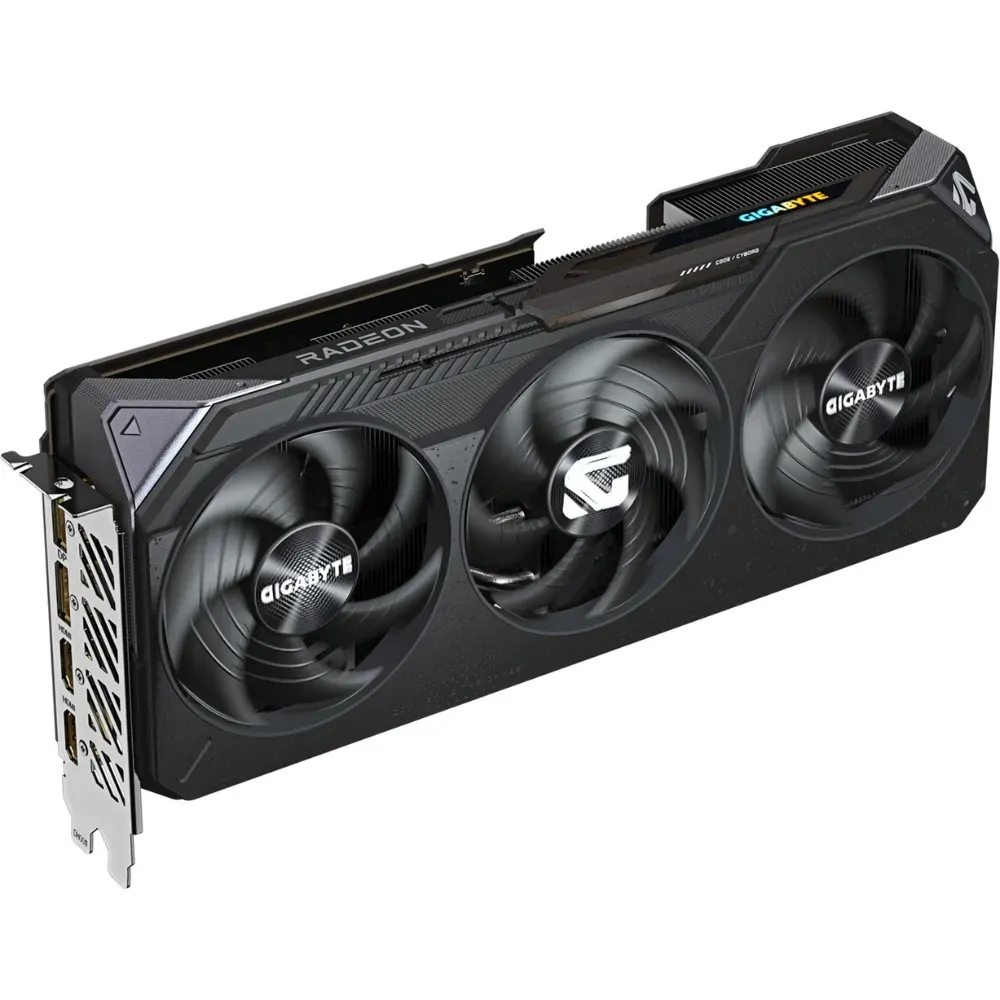

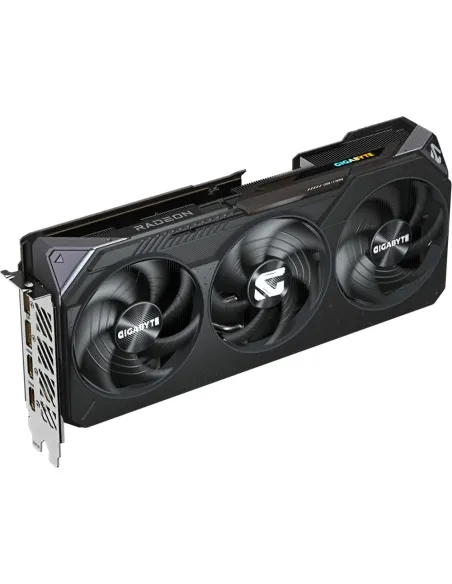

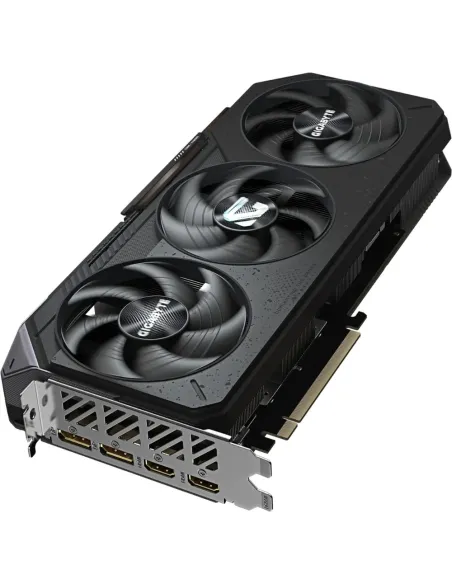

GIGABYTE Radeon RX 9070 GAMING OC: Unleashed RDNA 4 Power
Get ready for the next generation of competitive gaming and content creation. The GIGABYTE Radeon RX 9070 squeezes the absolute most out of AMD's RDNA 4 architecture, integrating 56 compute units with 3rd Gen Ray Tracing accelerators and 2nd Gen AI accelerators. With a Boost clock of up to 2700 MHz, you will enjoy ultra-realistic graphics and massive frame rates.

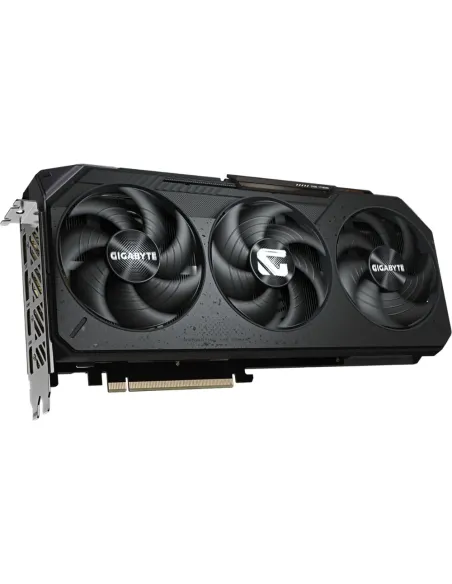

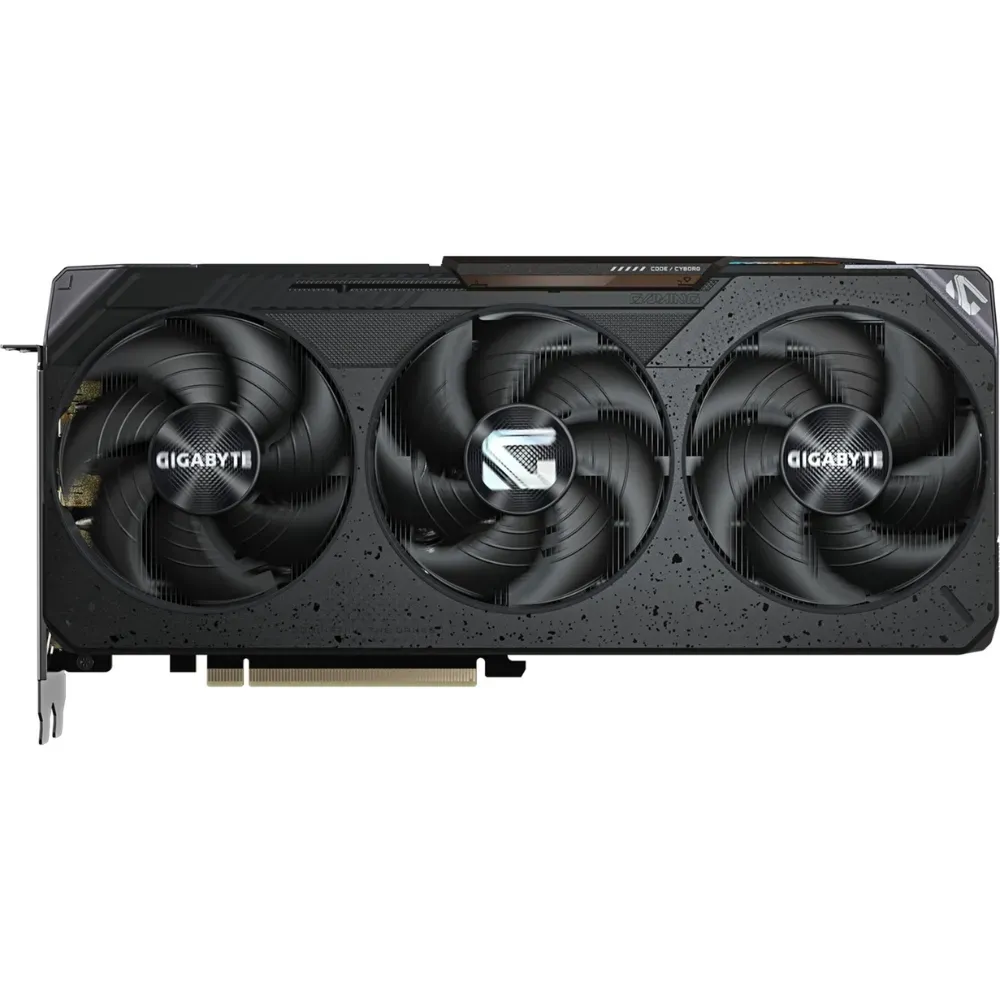

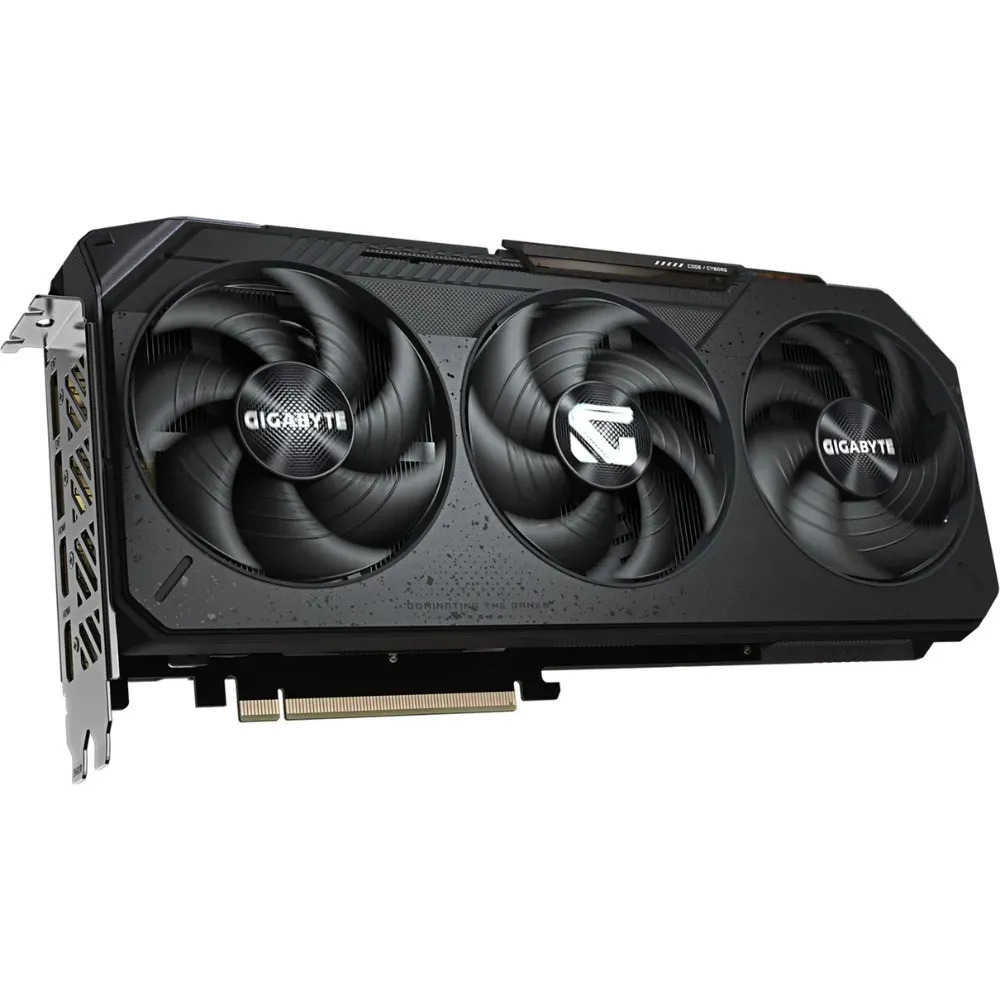

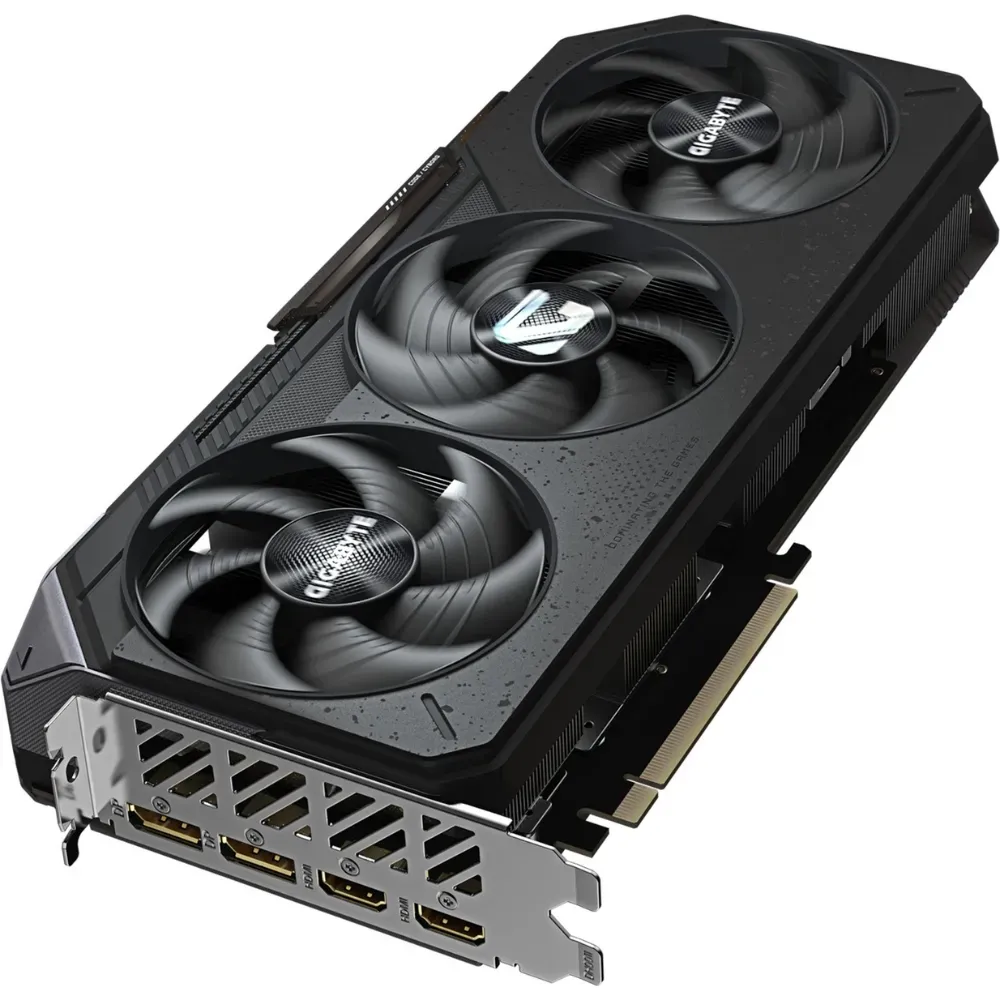

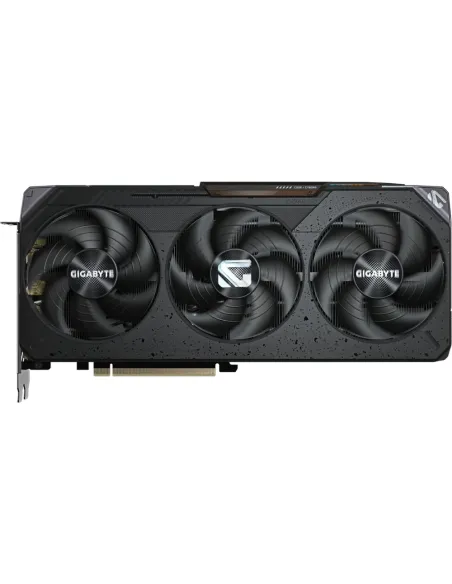

WINDFORCE 3X Cooling: Cool Under Pressure

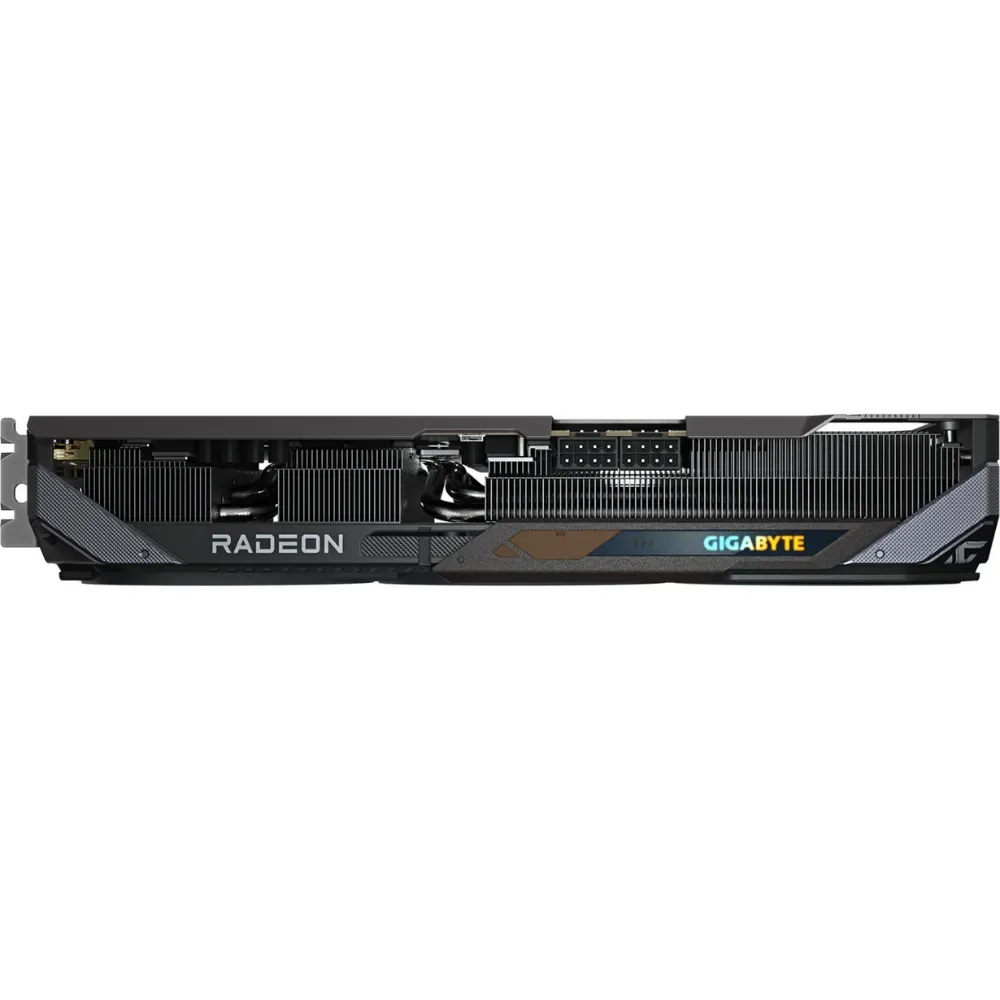

To tame all this power, GIGABYTE has implemented its legendary WINDFORCE thermal system. It features three alternate spinning fans that reduce turbulence and increase air pressure. The heatsink integrates a large copper plate in direct contact with the GPU and VRAM, supported by composite heat pipes and server-grade thermal gel, ensuring perfect heat transfer and exceptional durability.
Technical Specifications:
- GPU: AMD Radeon RX 9070 (RDNA 4 Architecture)
- Core Clock: Boost: up to 2700 MHz / Game: up to 2210 MHz
- Stream Processors: 3584 (56 Compute Units)
- Memory (VRAM): 16 GB GDDR6 at 20 Gbps
- Memory Bus: 256-bit
- Bus Interface: PCI Express 5.0
- Cooling System: WINDFORCE 3X (Triple 3D active fans)

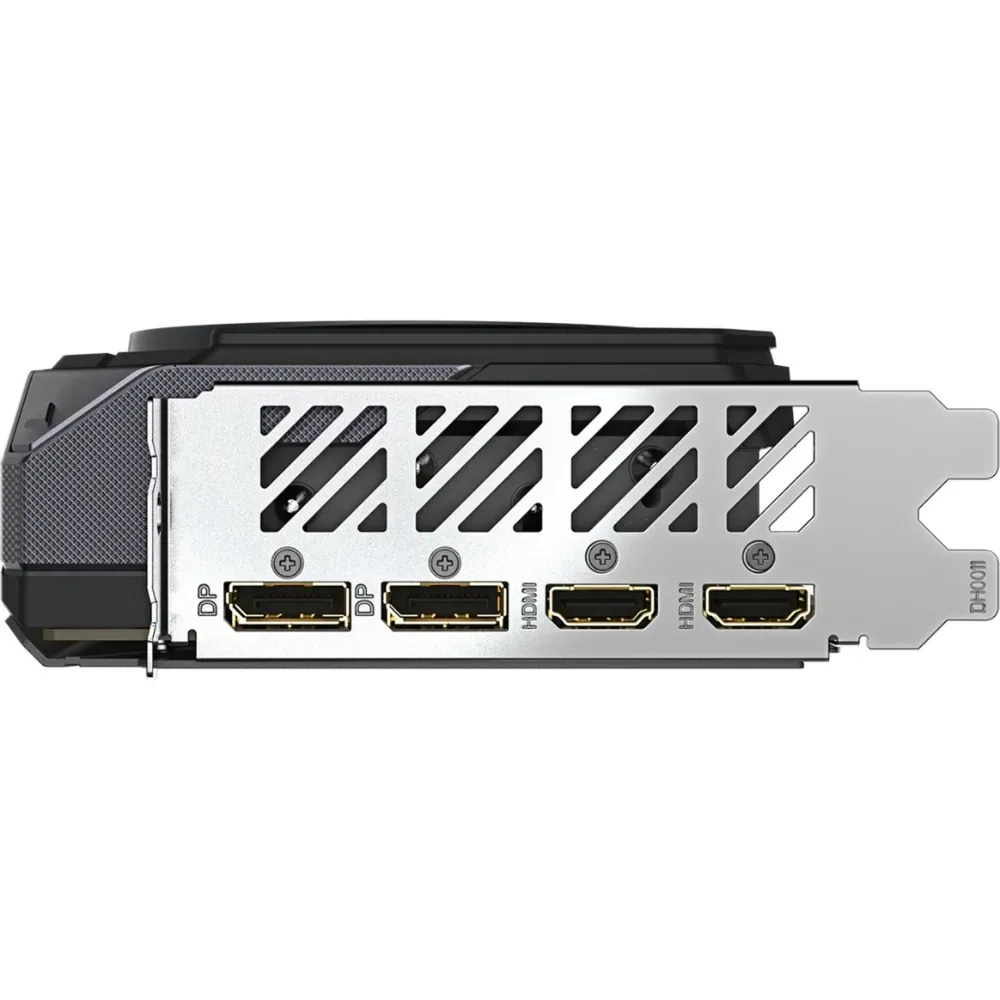

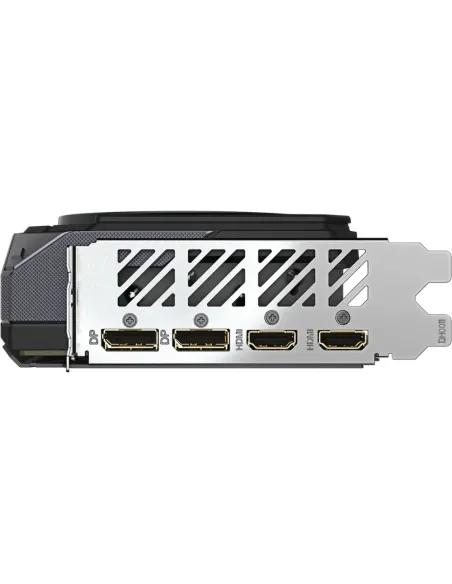

- Video Outputs: 2x DisplayPort 2.1a, 2x HDMI 2.1b (8K Support)
- Power Requirements: 750W recommended (2x 8-pin connectors)
- Dimensions / Form Factor: 288 x 132 x 50 mm (2.5 Slot design)
Cutting-Edge Technology and Total Control

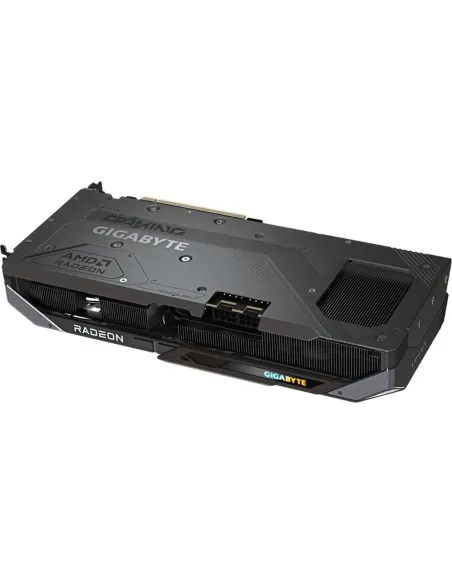

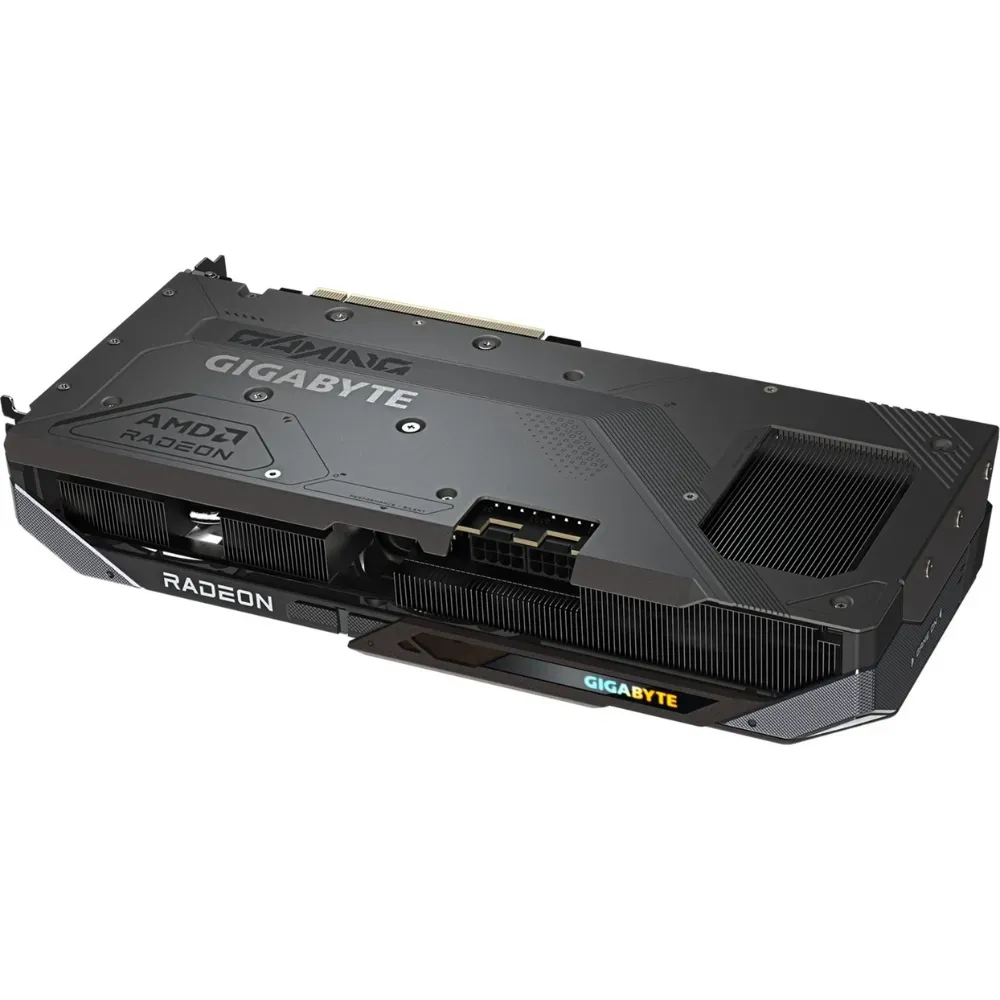

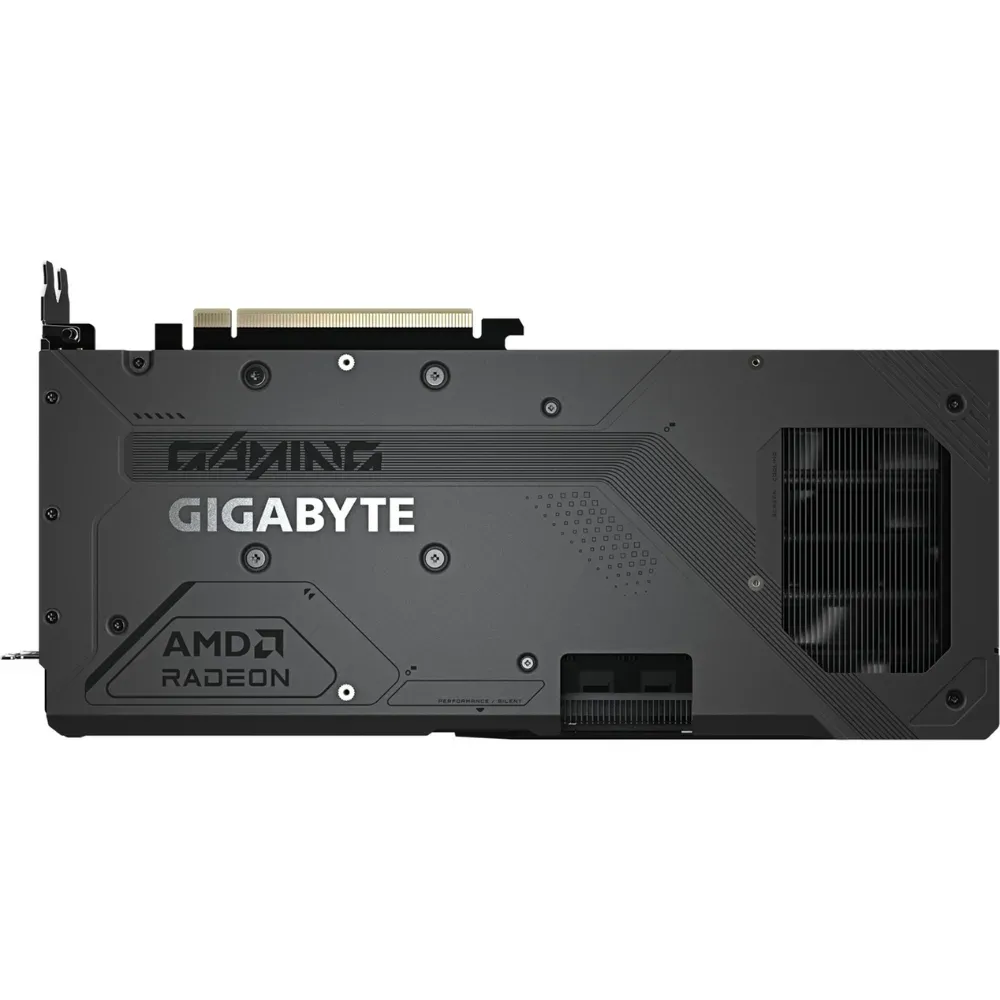

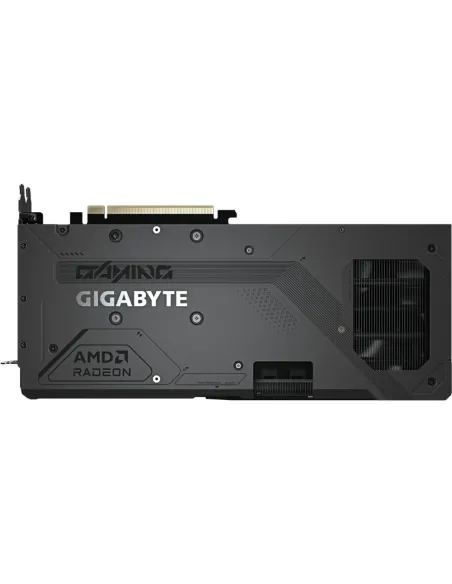

This card is ready for the future with its PCI-E 5.0 interface and DisplayPort 2.1a / HDMI 2.1b ports. It incorporates a physical Dual BIOS switch to choose between a maximum performance mode (OC) or a silent mode. Furthermore, aesthetics are not left behind: its reinforced metal backplate and customizable RGB Fusion lighting will give your setup a spectacular look.
