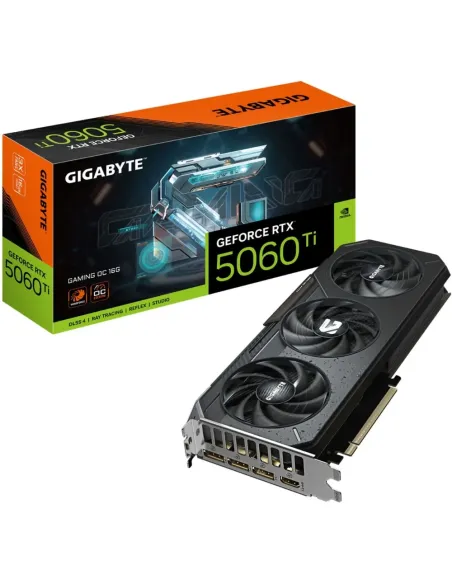

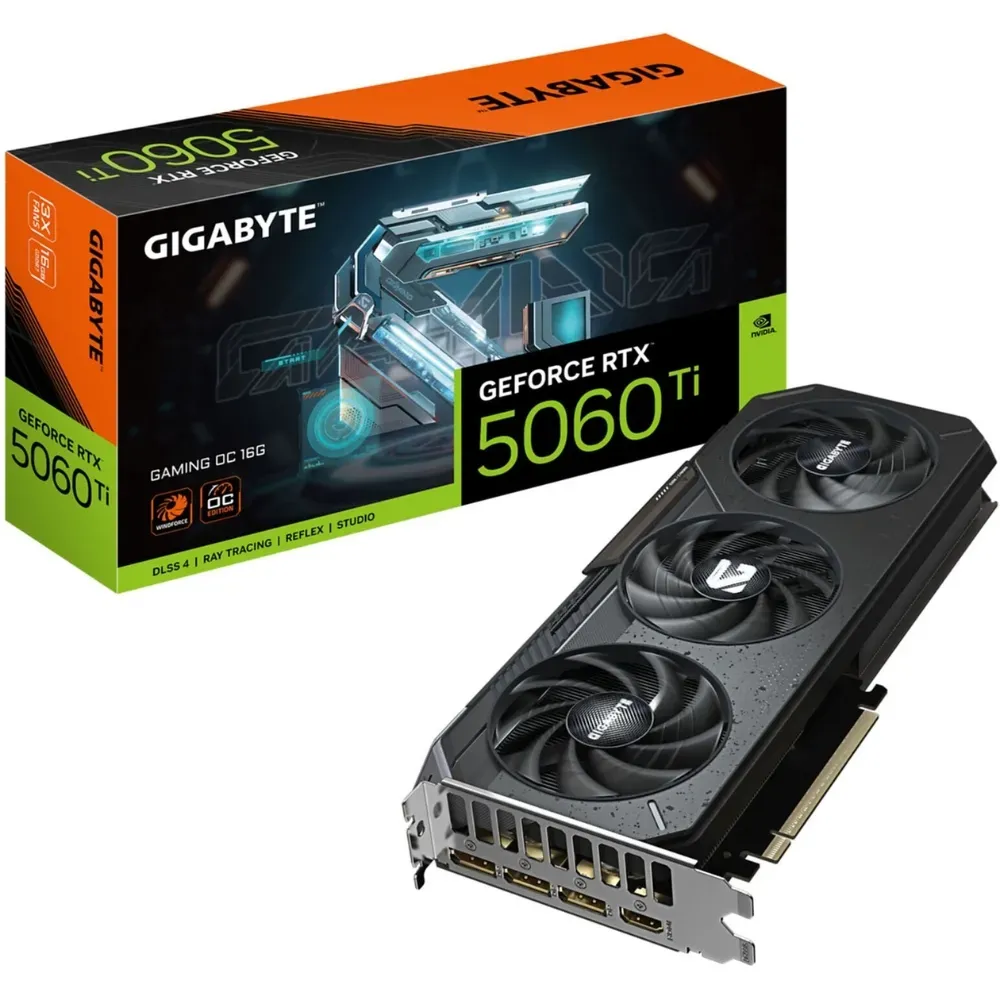

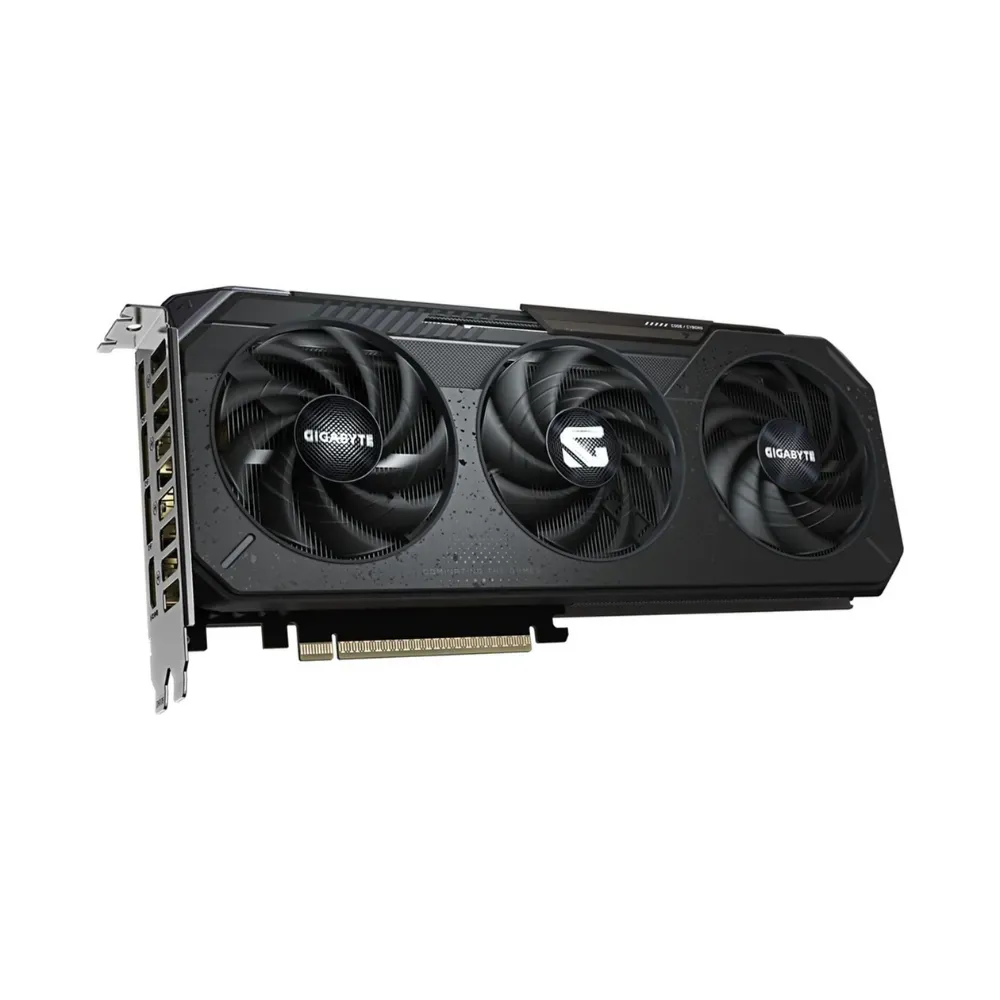

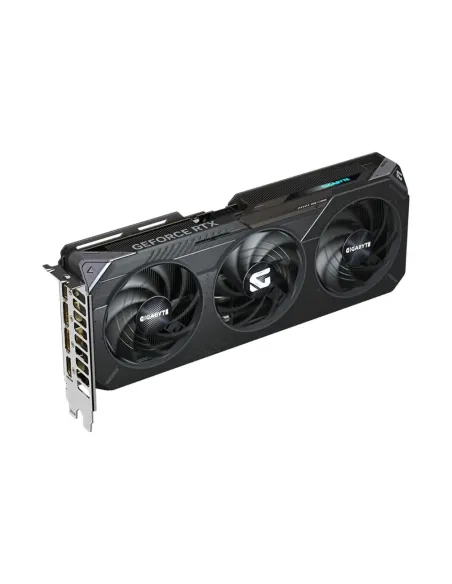

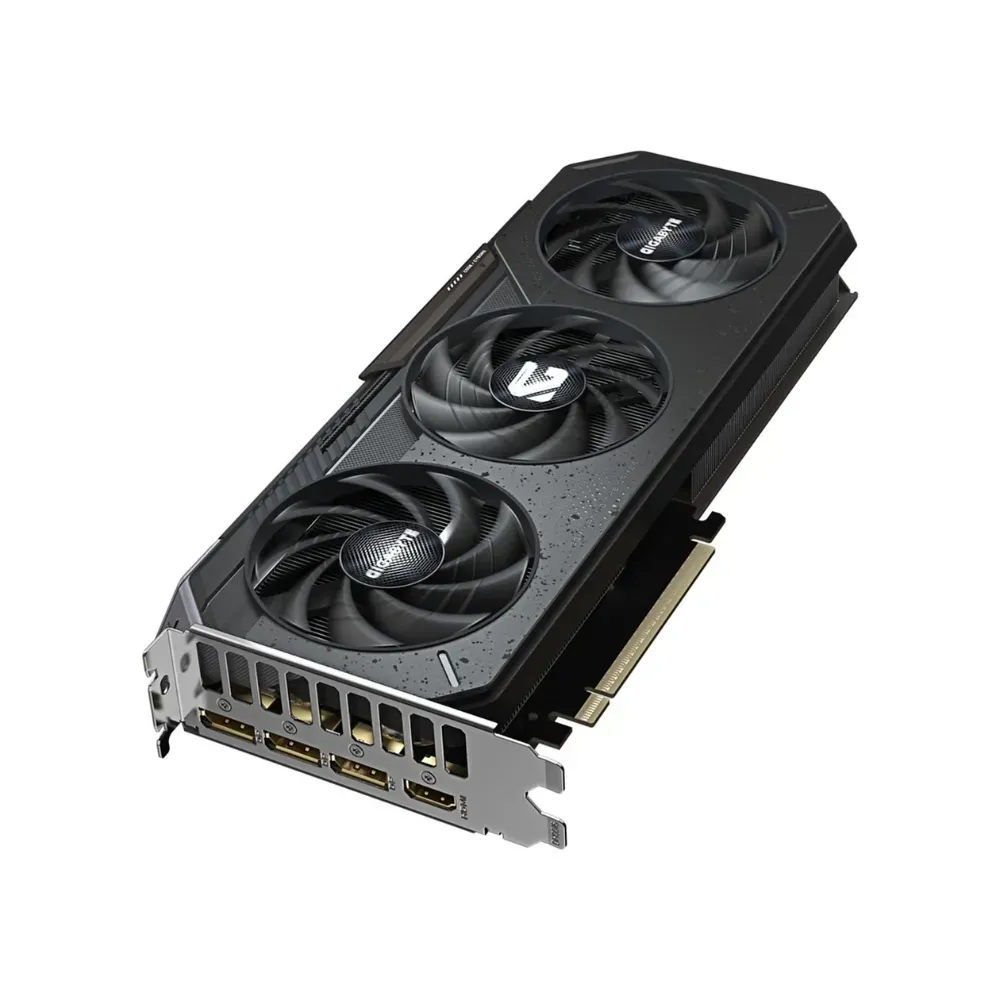

GIGABYTE RTX 5060 Ti GAMING OC: The Blackwell Revolution
Get ready for the new era of competitive gaming and high-level content creation. The NVIDIA Blackwell architecture redefines graphic fidelity thanks to its 4th-generation RT cores and 5th-generation Tensor cores. This GAMING OC edition comes factory-overclocked, reaching a frequency of 2647 MHz to deliver massive frame rates at 1440p and 4K resolutions.
NVIDIA DLSS 4 and Ultra-Fast GDDR7 Memory
The generational leap is massive. The inclusion of 16 GB of GDDR7 memory provides a transfer rate of 28 Gbit/s, ideal for ultra-high-resolution textures. Added to this is the debut of NVIDIA DLSS 4, which uses artificial intelligence for Multi-Frame Generation and Ray Reconstruction, skyrocketing your FPS while reducing latency with NVIDIA Reflex 2 technology.

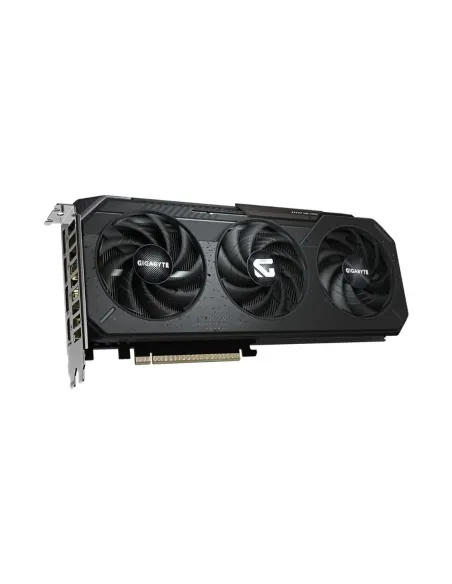

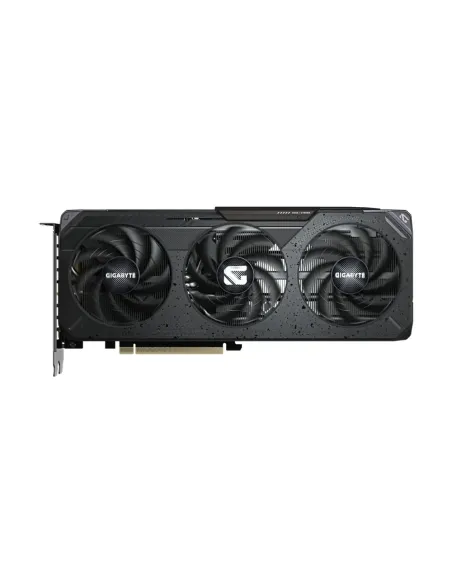

WINDFORCE 3X Cooling: Cool Under Pressure

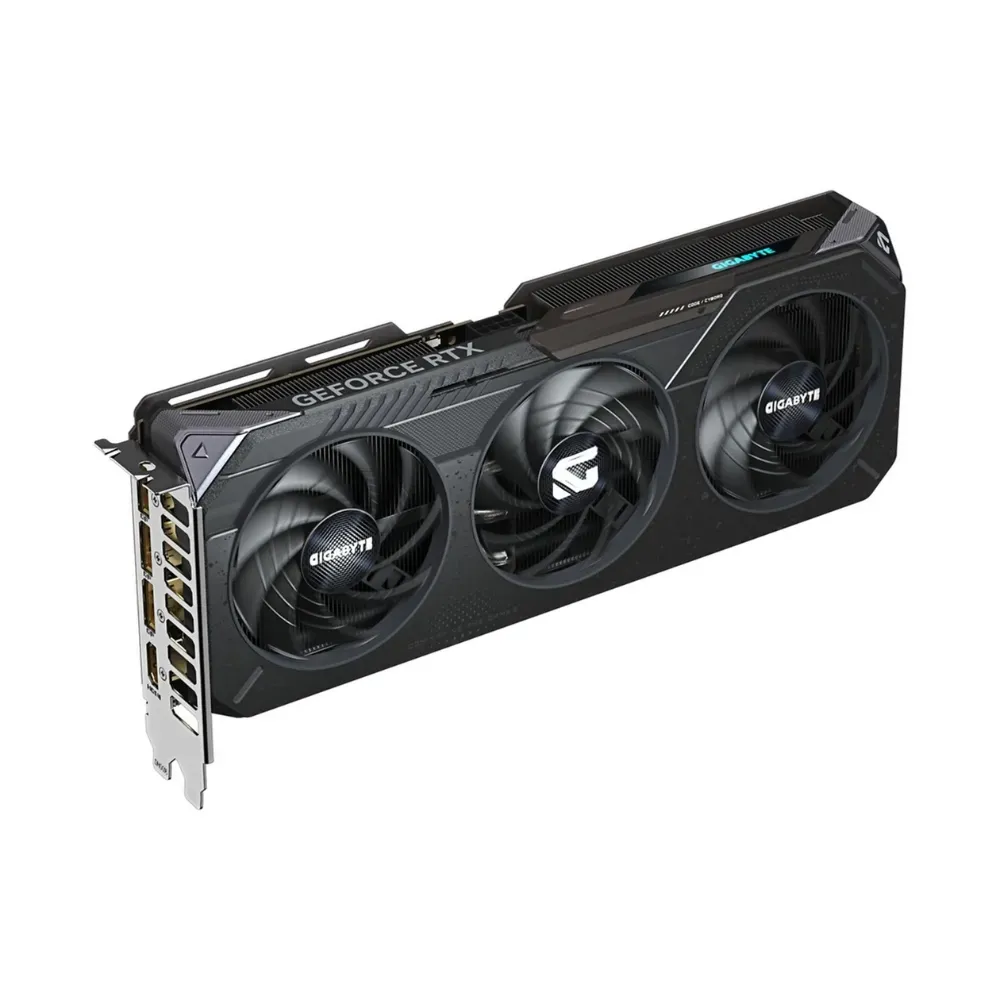

To tame such power, GIGABYTE has implemented its legendary WINDFORCE 3X thermal system. It features three fans that use alternate spinning to reduce turbulence and increase airflow pressure. Internally, a large copper plate and composite heat pipes pull heat away from the GPU and VRAM. Additionally, the Screen Cooling design allows air to pass entirely through the heatsink, drastically improving thermal dissipation.
Technical Specifications:
- GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell Architecture)
- CUDA Cores: 4608
- Core Clock: 2647 MHz (Factory OC)
- Memory (VRAM): 16 GB GDDR7 at 28 Gbps
- Memory Bus: 128-bit
- Bus Interface: PCI Express 5.0 x16

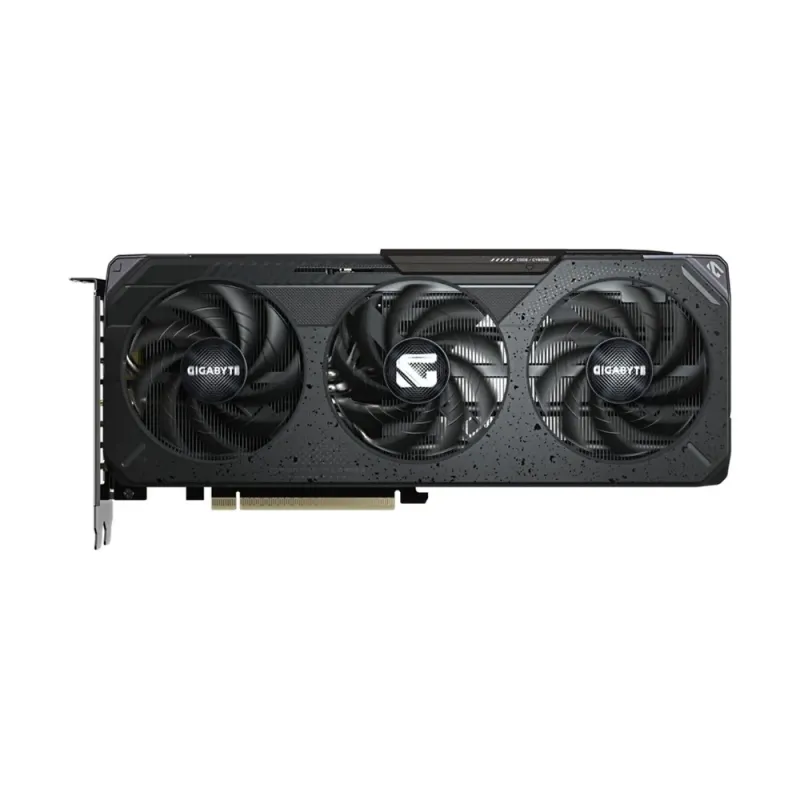

- Cooling System: WINDFORCE 3X (Triple 3D active fans)

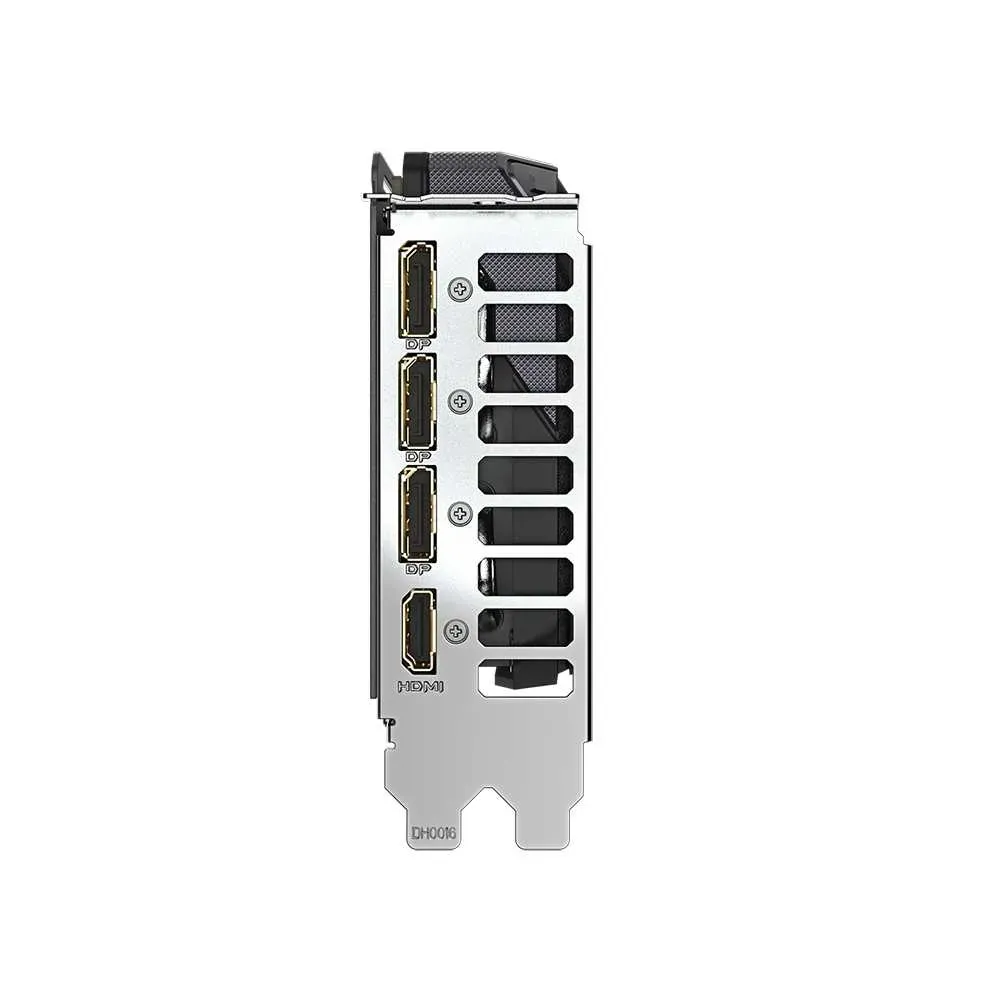

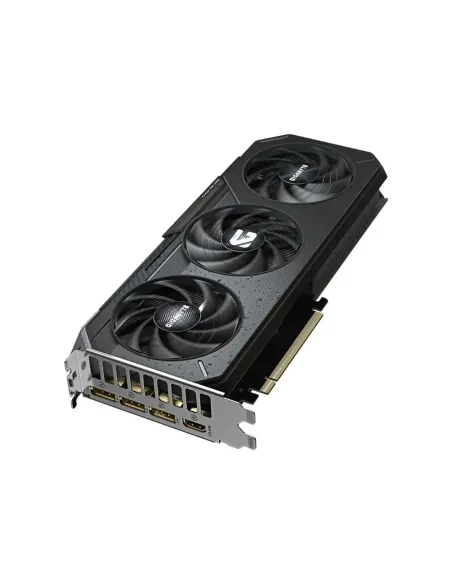

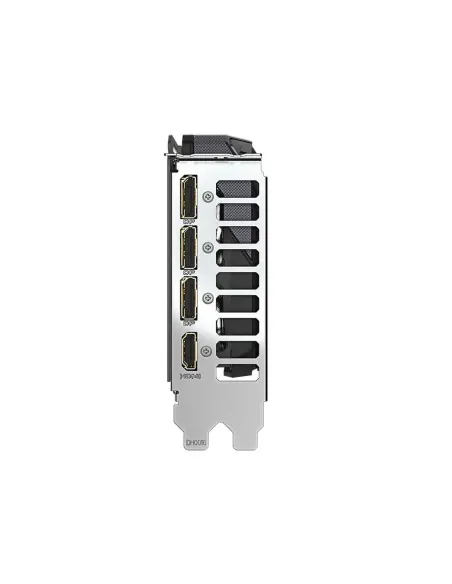

- Video Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b (8K Supported)

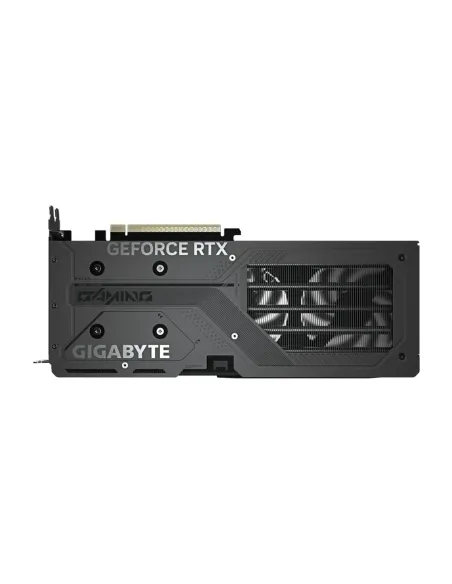

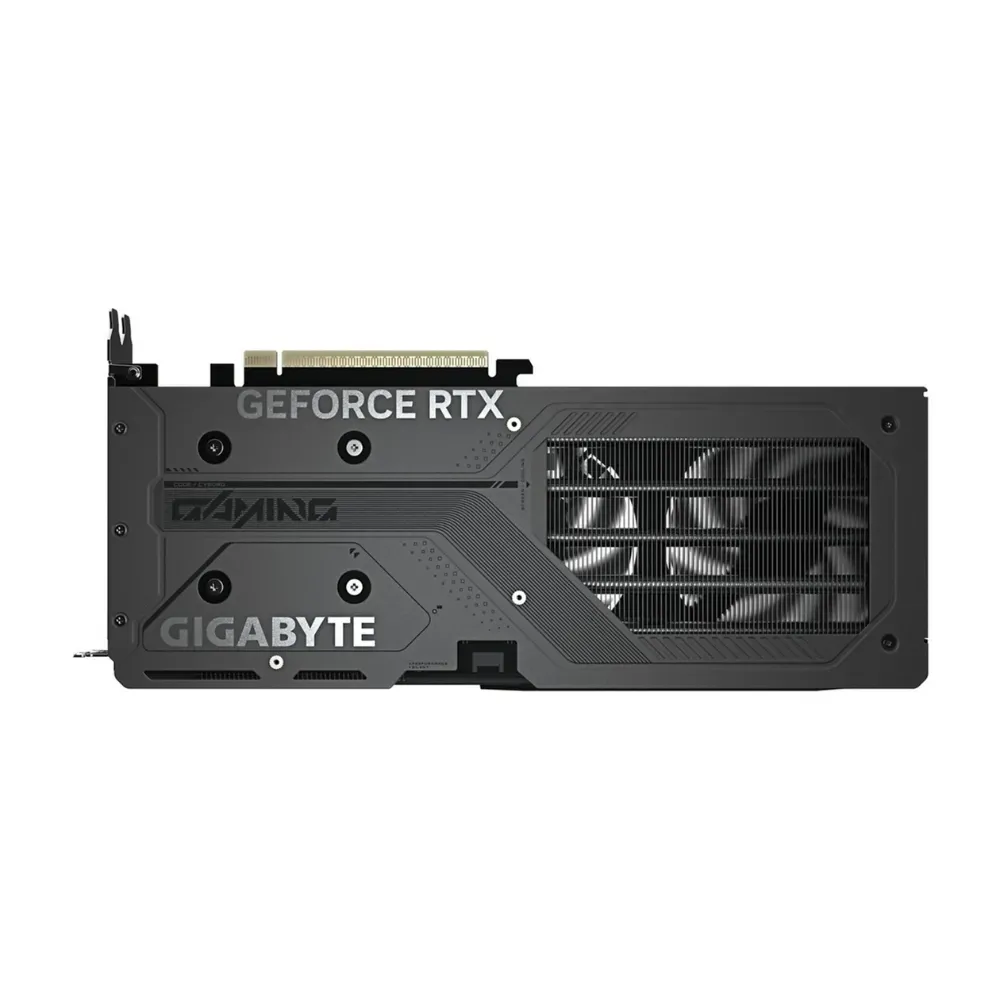

- Extra Features: Dual BIOS, Metal Backplate, and RGB Fusion

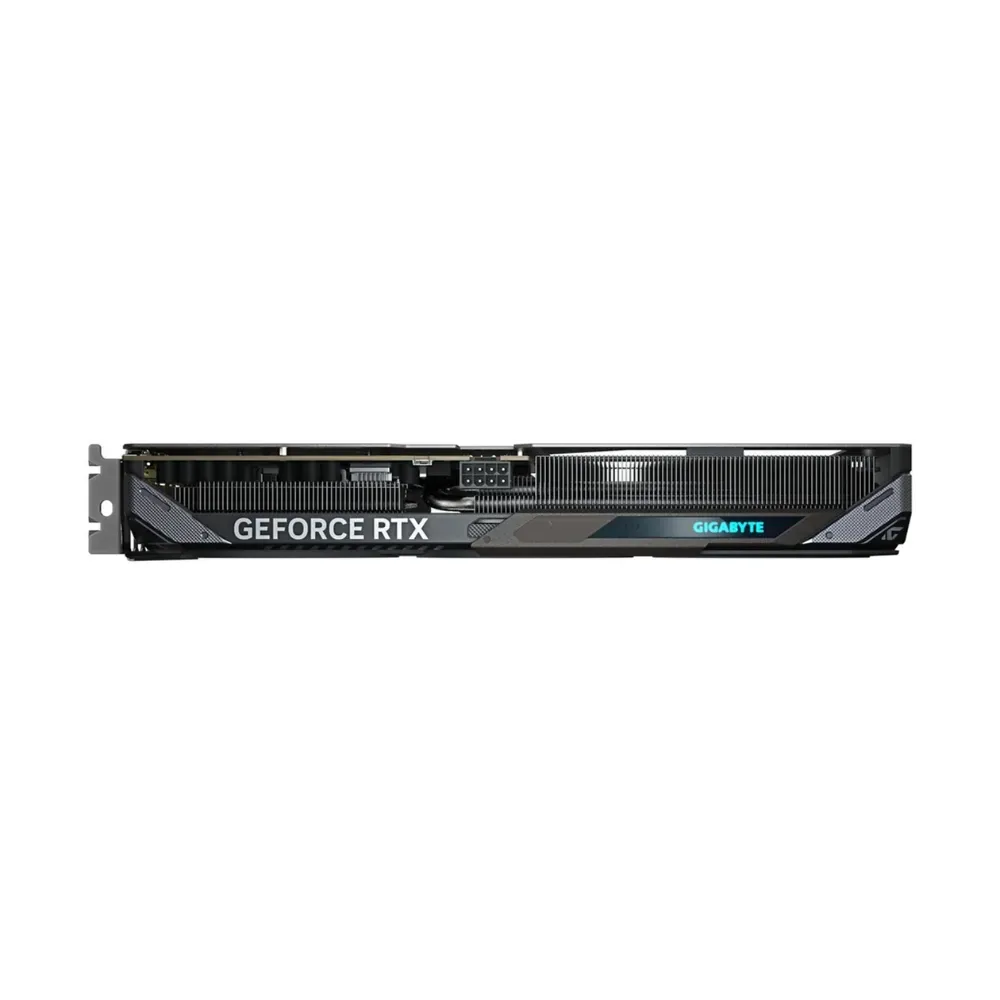

- Power Requirements: 1x 8-pin PCIe connector (650W PSU recommended)
- Dimensions / Form: 281 x 119 x 40 mm (2-Slot design)
