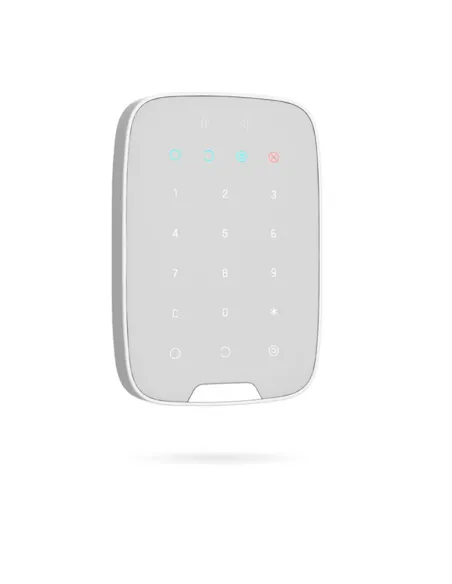

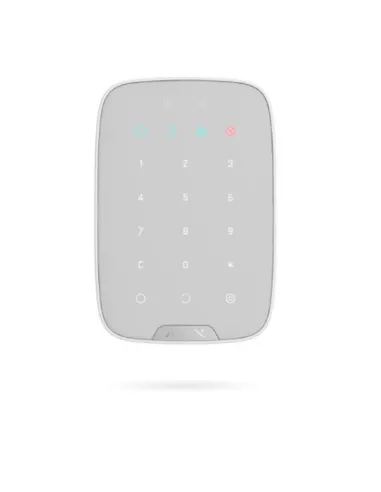

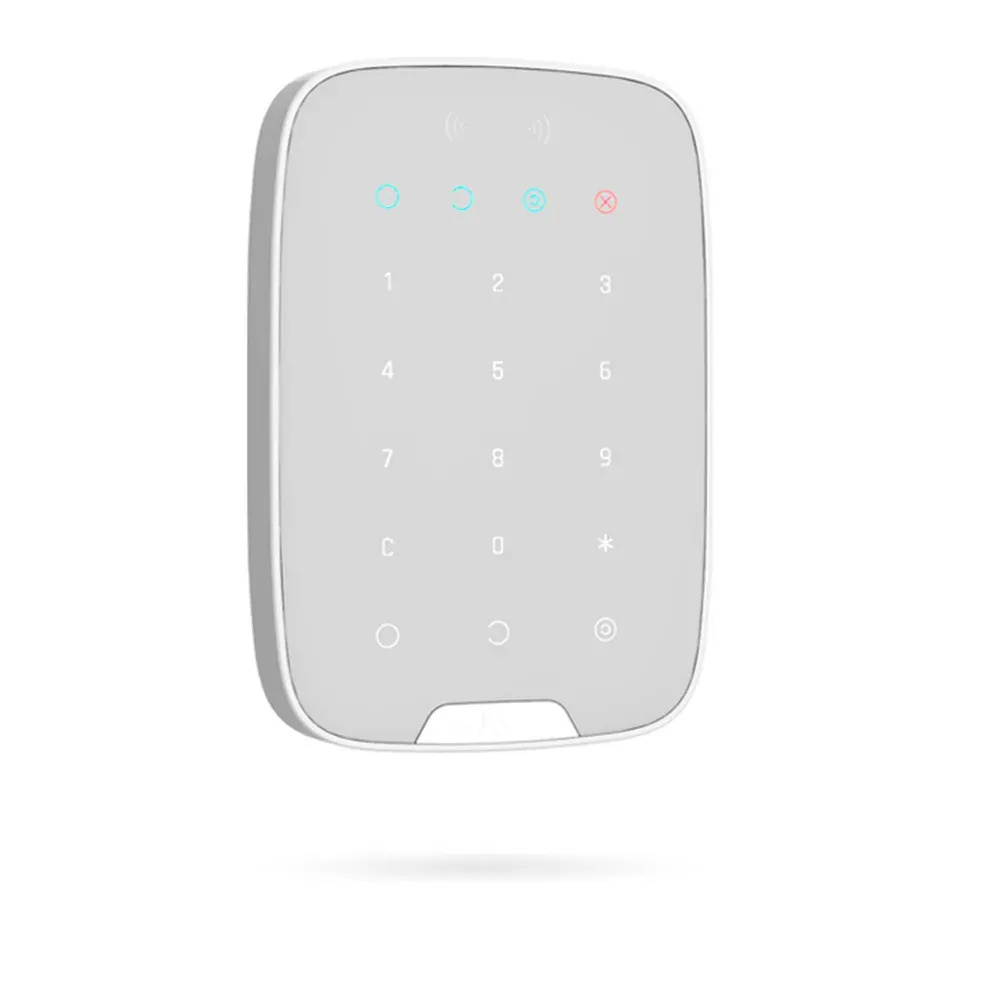

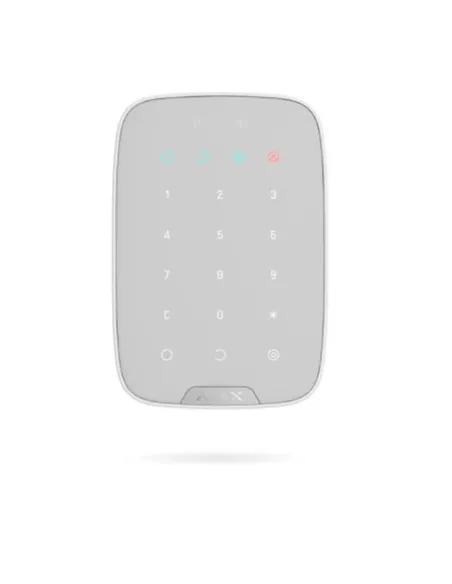

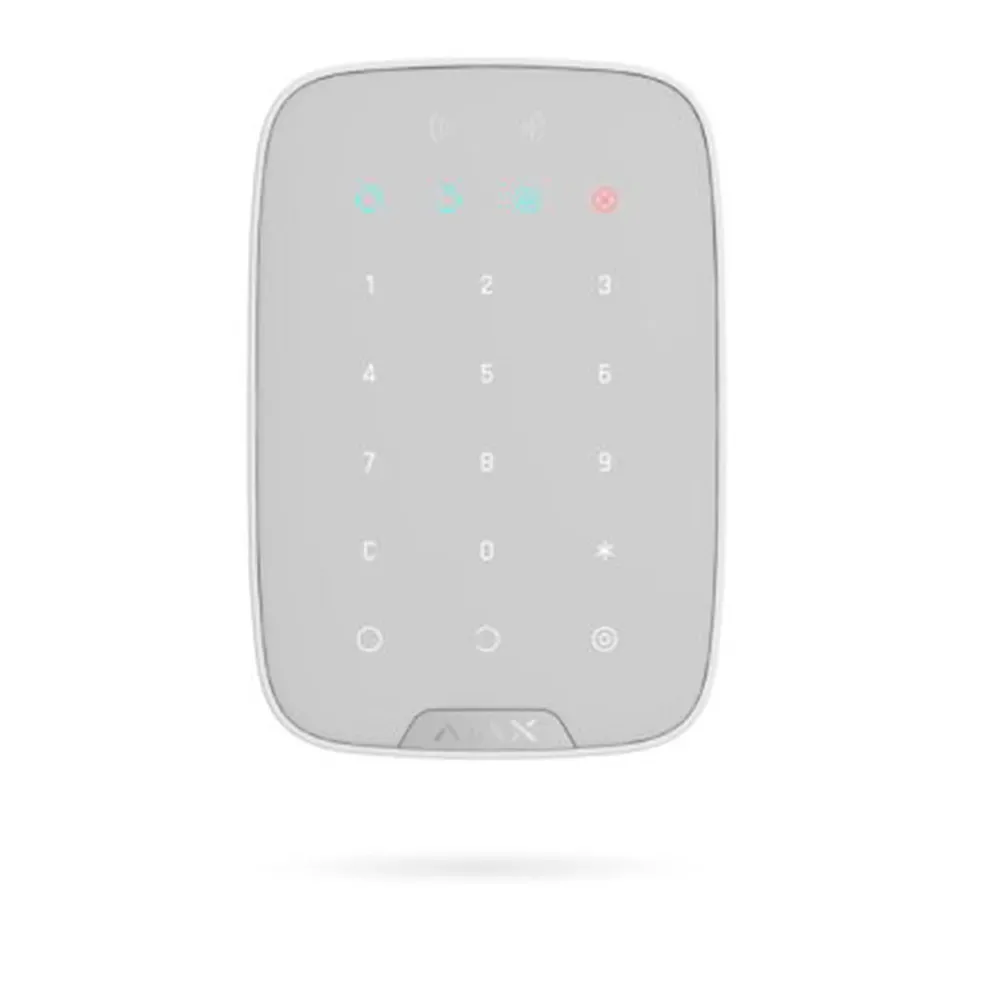

Ajax KeyPad Plus Wireless Touch Keypad - RFID Reader (Pass/Tag) Control

Features of the Ajax KeyPad Plus Jeweller

High-Security Contactless Control

The Ajax KeyPad Plus combines sleek design with the most advanced identification technology. Forget memorizing codes if you don't want to; thanks to its built-in RFID reader, you can manage security modes simply by tapping a Pass card or Tag fob (sold separately). These devices use DESFire® chips with 128-bit encryption, the security standard used in European transport systems and NASA access, ensuring total protection against copying.

Flexible User and Code Management

Tailor access to your needs. You can create personal codes for each family member or employee, and even assign access codes for unregistered guests (ideal for cleaning staff or temporary visitors). Everything is logged in the Ajax app history: you'll know exactly who armed or disarmed the system and when. Additionally, if you are forced to disarm the alarm under threat, you can enter a duress code that simulates a normal disarm but silently alerts the Central Monitoring Station.

Exceptional Autonomy and Range

Install it and forget about maintenance. The KeyPad Plus boasts superior energy efficiency, achieving up to 3.5 years of operation with pre-installed batteries. Its Jeweller radio technology ensures stable communication with the hub at a distance of up to 1,700 meters, allowing installation in large properties, offices, or warehouses without signal issues.

Smart Security and Automation

More than just a keypad. Use it to control automation scenarios: when arming the system, it can automatically close blinds, turn off lights, and shut off water. It also features advanced protection: it automatically locks if an incorrect code is entered 3 times and notifies of tampering attempts if someone tries to tear it off the SmartBracket mount.

Technical Specifications

Model: Ajax KeyPad Plus
Access Technology: DESFire® Reader (Pass Cards / Tag Fobs) & Passcodes
Radio Protocol: Jeweller (encrypted bi-directional)
Range: Up to 1,700 m in open space
Battery: 4x AA Lithium batteries (pre-installed)
Battery Life: Up to 3.5 years
Security: Duress code, lock after failed attempts, panic button
Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX
Colors: White / Black
